Description

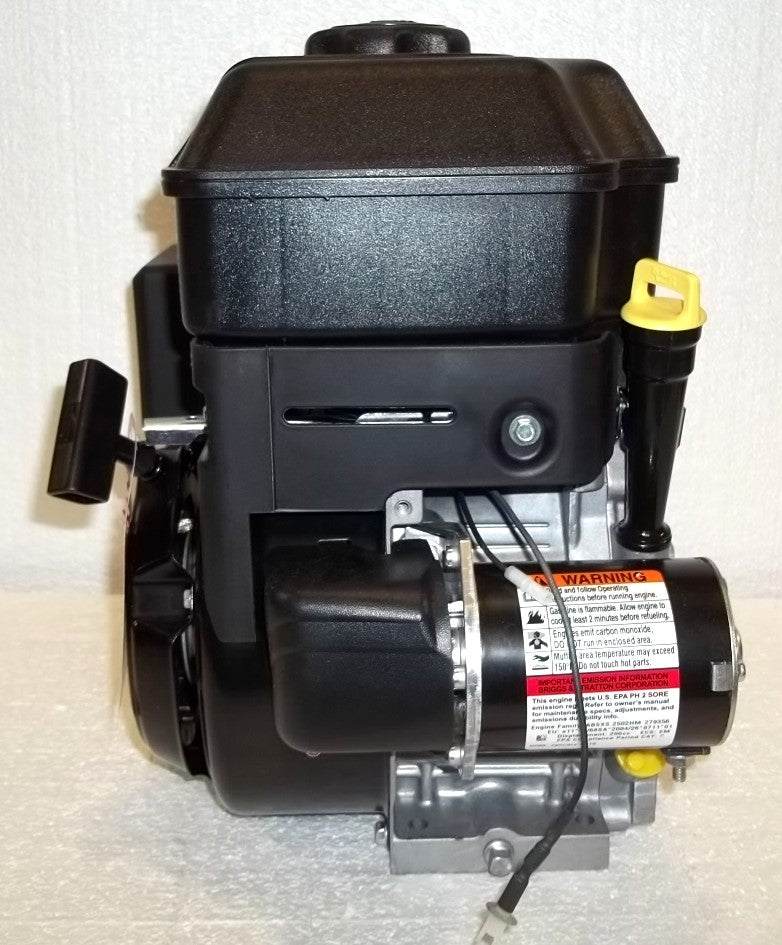

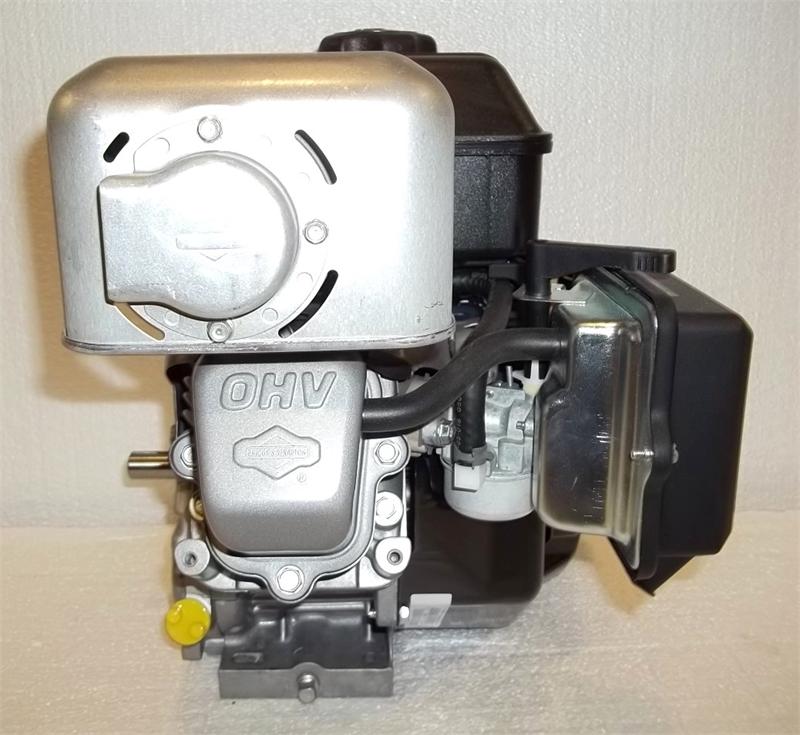

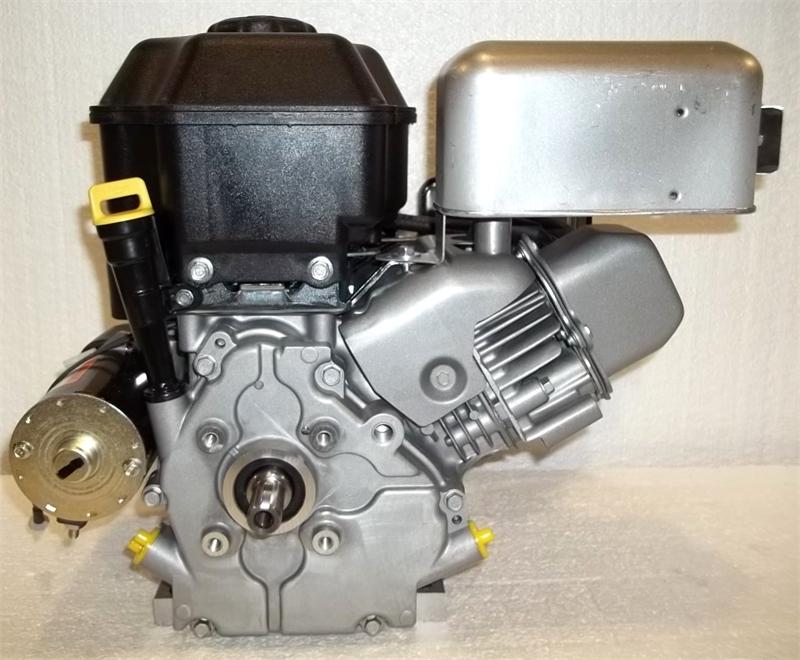

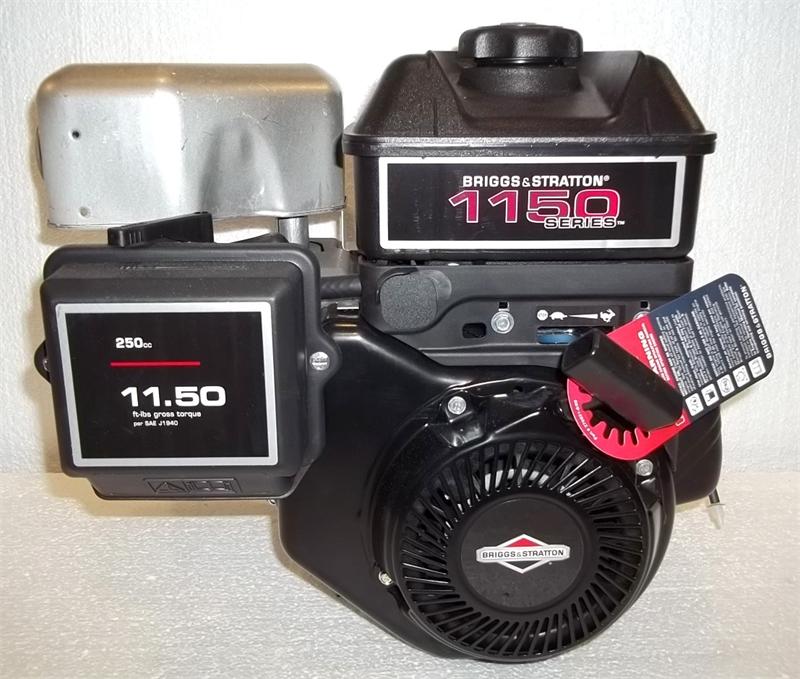

250CC 11.5 TP Series Briggs OHV
1150 Series engine
Formerly rated as 8hp. Interchanges with 5-7.5hp engine series.
11.5 Torque Power Rating

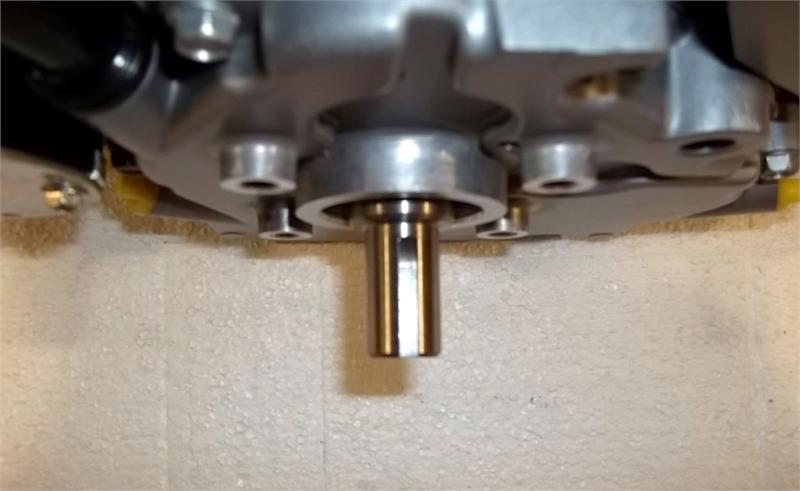

3/4" x 1-29/64" shaft, tapped 3/8-24" with 3/16" keyway
12volt electric start with recoil auxiliary
2 year consumer/ 90 day commercial warranty.
Fits newer Troy Bilt Pony Tillers
Model 15T207-0920.
40 lbs
Engine Specifications
| Engine Fuel | Gasoline |
| Configuration | Horizontal |
| Cylinders | One |
| SKU | 15T207-0920-F8 |
| Top No Load Speed | SET ENG NO-LOAD SPEED TO 3600 +/-100 RPM |
| Oil Capacity | 20 fl. oz. |
| Air Cleaner | AIR CLEANER, ULTRA LOW MT PANEL DUAL ELE |
| Chg System | ALTERNATOR, DC (1.5 AMP) |
| Bearings | BEARINGS, PLAIN MAG |
| Blower Housing | PLATE, TRIM - COLOR 290 - SATIN BLACK |
| Bore Type | Koolbore |
| Bore Size | 2.97 |
| Stroke | 2.2 |
| Casing Clamps | CASING CLAMP & METRIC SCREW WITHOUT |
| Controls Groups | CONTROL GROUP 37, MODEL 11/12/15 |
| Cylinder Head | CYLINDER, ALUMINUM |
| Deflectors | DEFLECTORS, SIDE OUT INSTALLED |
| Dipsticks | DIPSTICK, LOW MOUNT, OPP CARB SIDE |
| Oil Drain | OIL FILL, DUAL |
| Misc | FUEL SHUT OFF VALVE OMITTED |
| Flywheel | FLYWHEEL, HEAVY EQUIP FOR ELEC START |
| Governor | MECHANICAL GOVERNOR |
| Exhaust | MUFFLER, LO-TONE INSTALLED |
| Spark Plug | SPARK PLUG, RESISTOR |
| Starting System | STARTER, REWIND POSITION - 1:30 O'CLOCK |
