Name: Briggs & Stratton Horizontal 11.5 TP INTEK OHV MTD taper 2-23/32" Shaft #15T202-0915
Brand: Briggs & Stratton
SKU: 15T202-0915
Price: 395.0 USD
Availability: InStock

Briggs & Stratton Horizontal 11.5 TP INTEK OHV MTD taper 2-23/32" Shaft #15T202-0915

Roll over image to zoom in Click on image to zoom

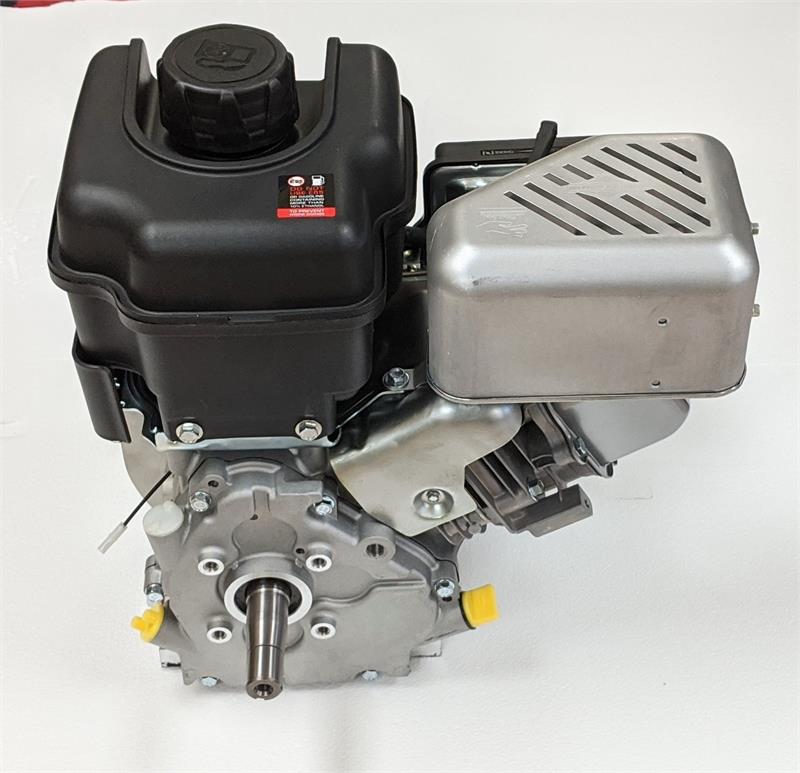

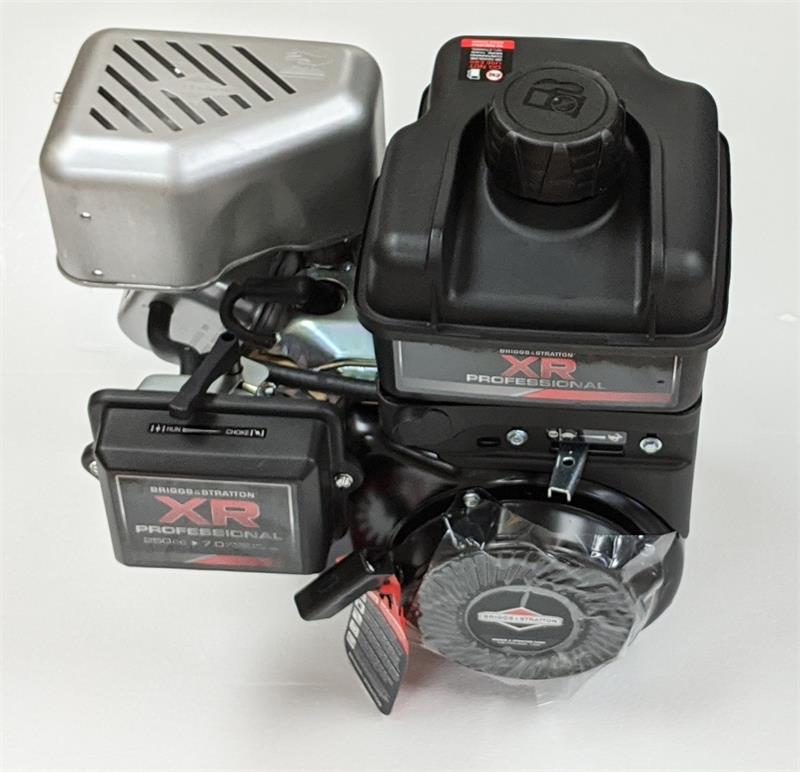

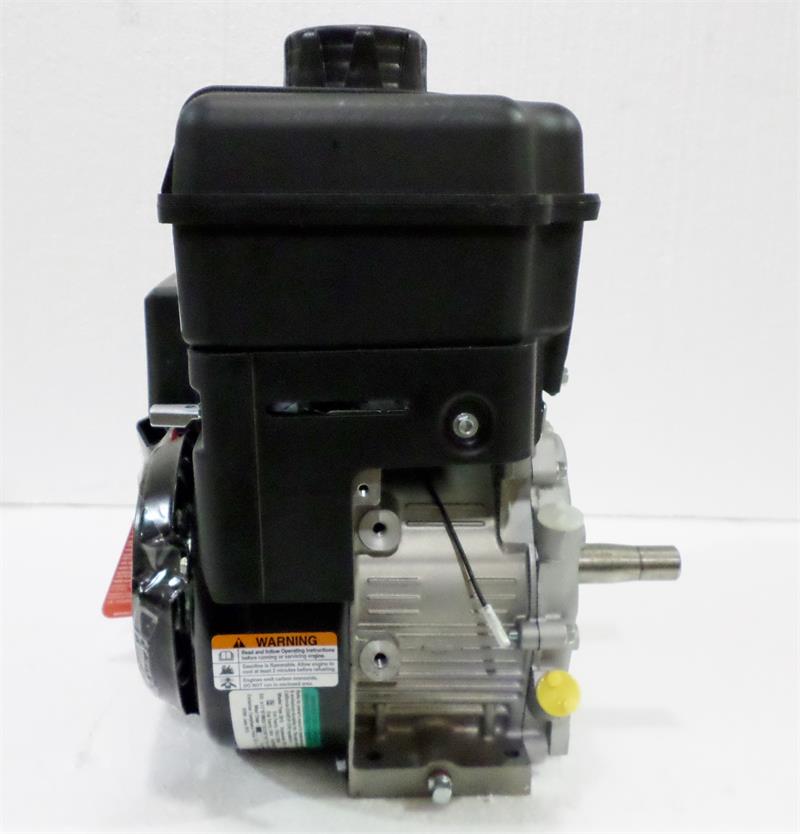

Briggs & Stratton 1150 Series Intek OHV Horizontal Shaft Engine


MODEL NUMBER:	15T202-0915

POWER OUTPUT:	11.50 Torque Power Formerly rated as 8hp. Interchanges with 5-7.5hp engine series.

SHAFT MOUNTING:	Horizontal Shaft

SHAFT SIZE: (D x L)	MTD style taper

STARTER TYPE:	Recoil Starter

APPLICATION(S):	MTD Chipper/Shredder Applications

WEIGHT:	40 lbs

REPLACES:	Replaces 8hp Series Engine

WARRANTY:	2 Years Consumer / 90 Day Commercial Covered Through Briggs & Stratton Service Network

NOTES/FEATURES:

250CC 1150 Series Briggs OHV

Formerly rated as 8hp. Interchanges with 5-7.5hp engine series.

11.5 Torque Power Rating

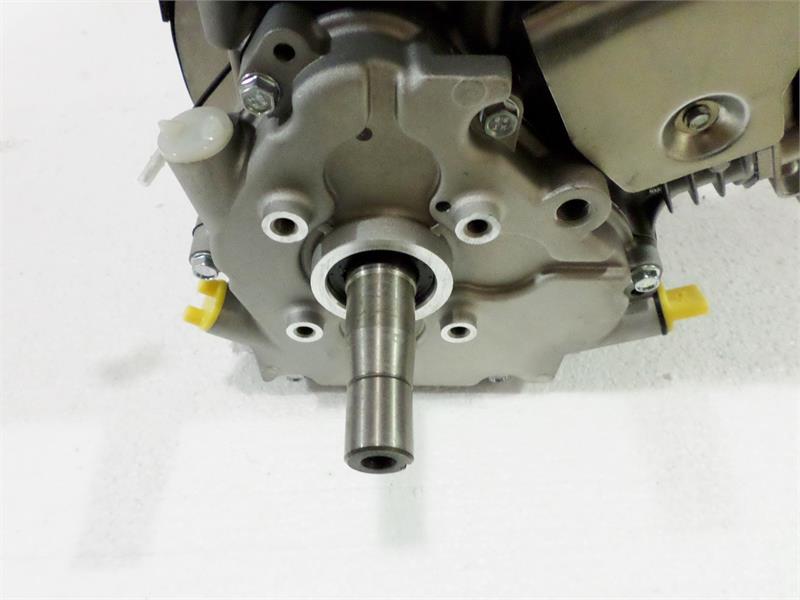

7/8" step tapered 2-23/32"shaft, tapped 3/8"

Fits MTD style chippers,etc.

2 year consumer/ 90 day commercial warranty.

Model 15T202-0915

40 lbs

Specifications

Engine Fuel	Gasoline
Configuration	Horizontal
Cylinders	One
SKU	15T202-0915-F8
Top No Load Speed	SET ENG NO-LOAD SPEED TO 3600 +/-100 RPM
Oil Capacity	20 fl. oz.
Air Cleaner	AIR CLEANER, ULTRA LOW MT PANEL DUAL ELE
Bearings	BEARINGS, PLAIN MAG
Blower Housing	PLATE, TRIM - COLOR 290 - SATIN BLACK
Bore Type	Koolbore
Bore Size	2.97
Stroke	2.2
Intake	HIGH INERTIA CARBURETOR
Casing Clamps	CASING CLAMP & METRIC SCREW WITHOUT
Controls Groups	CONTROL GROUP 37, MODEL 11/12/15
Cylinder Head	CYLINDER, ALUMINUM
Deflectors	DEFLECTOR, WITHOUT (METRIC SCREW REQ'D)
Dipsticks	DIPSTICK, LOW MOUNT, CARB SIDE
Oil Drain	OIL FILL, DUAL
Misc	FUEL SHUT OFF VALVE OMITTED
Flywheel	FLYWHEEL, HEAVY NON-ELEC START & NON-ALT
Governor	MECHANICAL GOVERNOR
Exhaust	MUFFLER, LO-TONE INSTALLED
Spark Plug	SPARK PLUG, RESISTOR
Starting System	STARTER, REWIND POSITION - 10:30 O'CLOCK
