Description
 |
 |
|
|

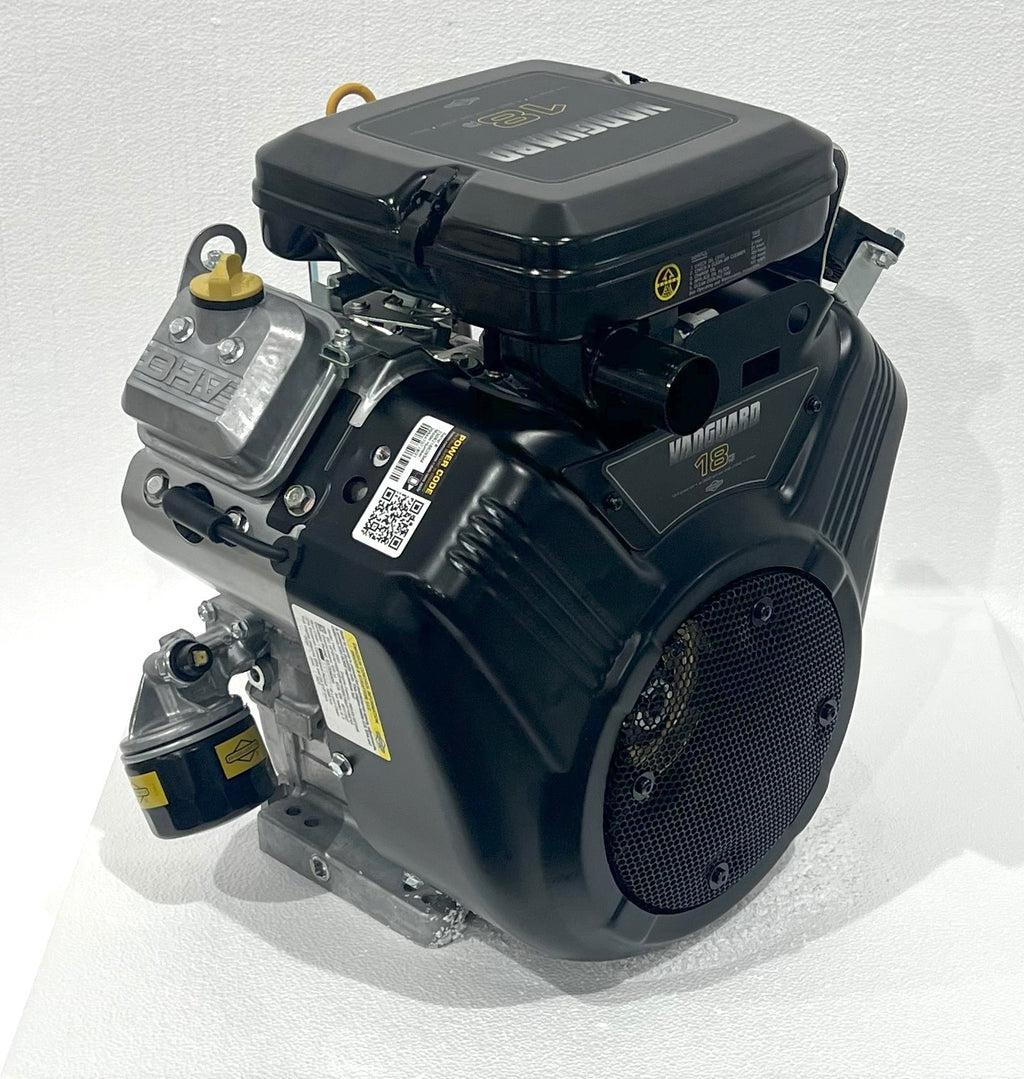

18hp Briggs Vanguard
1" x 2-29/32" shaft, tapped 3/8" with 1/4" keyway.
1" x 2-29/32" shaft, tapped 3/8" with 1/4" keyway.
Cast iron sleeves, fuel pump, full pressure lube w/ oil filter,
electric start w/ 16amp alternator.
Less fuel tank, less muffler.
Universal replacement engine for Grasshopper and other premium lawn & garden
and industrial/commercial applications.
Model 356447-0718
91 lbs
Engine Specifications
| SKU | 356447-0718-G1 |
| Model/Type/Trim | 356447-0718-G1 |
| Air Cleaner | Dual Element |
| Alternator | 16 amp |
| Carburetor | Installed |
| Casing Clamp | Installed |
| Controls | Equip for Remote |
| Crankshaft | 1" Dia X 2.90/2.98" Long |
| Crankshaft Details | 1/4" Keyway, 3/8-24 D&T |
| Dead Idle Speed | 1550+/-100 |
| Emissions Certification | EPA EXH, EU |
| Engine Base | Installed |
| Engine Idle Speed | Gov Idle 1750+/-100 |
| Engine Package | Vanguard |
| Engine Sold In | USA (49), EU, UK |
| Engine Speed | 3300+/-100 |
| Flywheel | Heavy - Cast Iron |
| Fuel Line | 6" Hose w/20 Micron Filter |
| Fuel Pump | Installed |
| Fuel Shutoff | Without |
| Fuel Tank | Without |
| Label Power | 18 HP - Model 3564 |
| Muffler Guard | Without |
| Oil Cooler | Without |
| Oil Dipstick | Extended, Inboard Orientation |
| Oil Drain | Flush, Dual Sides |
| Oil Filter | Installed |
| Oil Pressure Switch | Oil Pressure Switch 1 - 4 PSI |
| Purge Port | High Vac, Single Barrel Cyl 1 |
| Rewind Position | Without |
| Wire Harness | Loose |
