Briggs & Stratton Horizontal 35 HP Vanguard 1-1/8" x 4" Tapped 7/16" #613477-0268 (613477-3111)
Briggs & Stratton Horizontal 35 HP Vanguard 1-1/8" x 4" Tapped 7/16" #613477-0268 (613477-3111)
Briggs & Stratton Horizontal 35 HP Vanguard 1-1/8" x 4" Tapped 7/16" #613477-0268 (613477-3111)
Briggs & Stratton Horizontal 35 HP Vanguard 1-1/8" x 4" Tapped 7/16" #613477-0268 (613477-3111)
Briggs & Stratton Horizontal 35 HP Vanguard 1-1/8" x 4" Tapped 7/16" #613477-0268 (613477-3111)
Roll over image to zoom in Click on image to zoom
613477-3111Briggs & Stratton Horizontal 35 HP Vanguard 1-1/8" x 4" Tapped 7/16" #613477-0268 (613477-3111)Briggs & Stratton Horizontal 35 HP Vanguard 1-1/8" x 4" Tapped 7/16" #613477-0268 (613477-3111)Briggs & Stratton Horizontal 35 HP Vanguard 1-1/8" x 4" Tapped 7/16" #613477-0268 (613477-3111)Briggs & Stratton Horizontal 35 HP Vanguard 1-1/8" x 4" Tapped 7/16" #613477-0268 (613477-3111)Briggs & Stratton Horizontal 35 HP Vanguard 1-1/8" x 4" Tapped 7/16" #613477-0268 (613477-3111)

Briggs & Stratton Horizontal 35 HP Vanguard 1-1/8" x 4" Tapped 7/16" #613477-0268 (613477-3111)

Briggs & StrattonSKU: 613477-0268
Price:
$3,299.00
Stock:
In stock (6 units), ready to be shipped

Description

35hp Briggs Vanguard

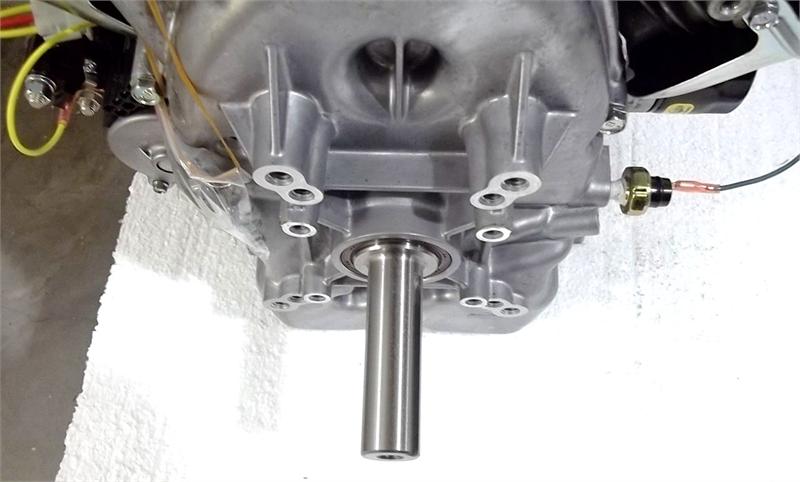

1-1/8" x 4" shaft, tapped 7/16" with 1/4" keyway.
Cast iron sleeves, fuel pump, full pressure lube w/ oil filter, electric start w/ 20amp alternator,
advanced debris management system, remote throttle, remote choke.
Less fuel tank, less muffler.
Universal replacement engine for pressure washers, saws, compressors, rollers,
log splitters, etc.
2 year warranty.
Model 613477-0268.
160 lbs
V-Twin/OHV Technology Superior balance and low vibration saves wear and tear on components and equipment Robust 993 (61 cubic inch) Displacement Broad equipment application Increased Horsepower-to-Weight Ratio Contributes to engine efficiency reduces compaction and makes handling easier Innovative Intake and Exhaust System Results in a quieter-running engine Advanced Debris Management System Allows the engine to run cleaner and cooler, which enhances durability and performance Assures longer engine life and improved oil control Ensures maximum engine protection, even in dusty conditions Industrial-Grade Solenoid Shift Starter Motor

Quick, reliable starts Five-Inch Centrifugal Multi-Stage Industrial Air Cleaner

Provides maximum engine protection, especially under dirt and dusty conditions Large-Volume Muffler with Specially Baffled Chambers

Minimizes noise
Full-Pressure Oil Lubrication System with Spin-On Filter

Reduces maintenance and extends engine life
Large Oil Capacity

Cooler oil temperature Low Oil Consumption

Longer running times between scheduled maintenance Low Fuel Consumption

Less frequent refueling stops Low Noise and Smooth-Running Operation

Maximizes operator productivity by minimizing fatigue Engine Warranty

2-year engine warranty

Ignition Warranty Lifetime Magnetron® ignition warranty

Number of Cylinders 2

Gross Power: (kW/HP) 26 @ 3600 / 35 @ 3600

Peak Gross Torque: (Nm/ft-lbs) 70.8 @ 2200 / 52.2 @ 2200

Bore: (mm/in) 85.5 / 3.4

Stroke: (mm/in) 86.5 / 3.4

Displacement: (cm³/in³) 993 / 60.6

Oil Capacity: (l/oz) 2.3 / 77.8 (with filter)

Dimensions: (LxWxH) / (mm/in) 384 x 496 x 725 (without muffler)

15.1 x 19.5 x 28.5 (without muffler)
