Description

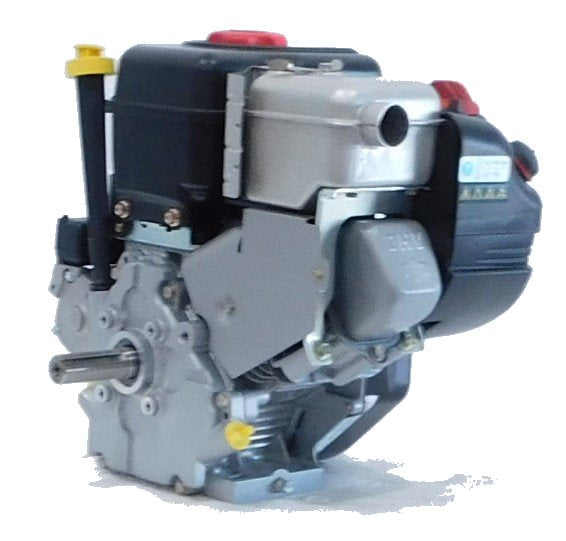

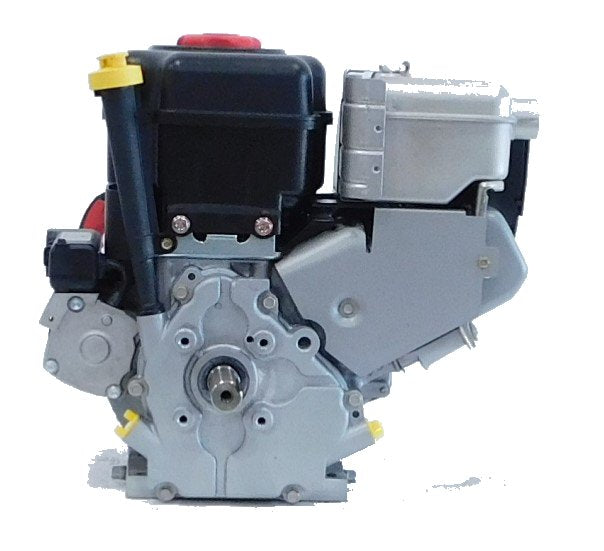

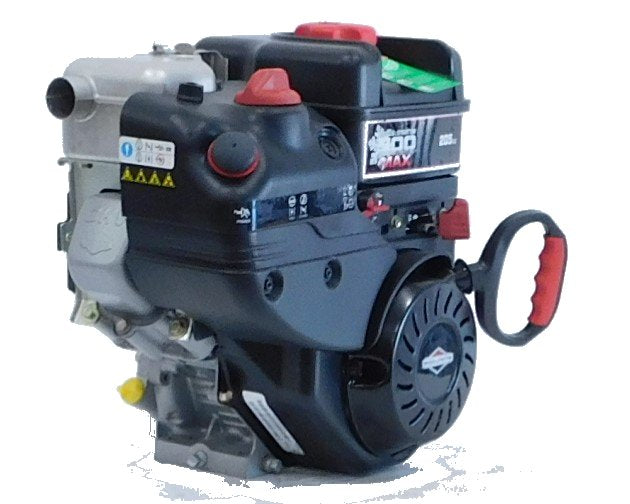

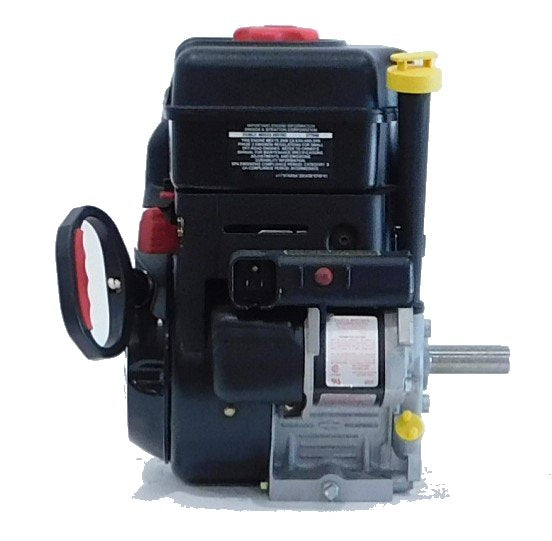

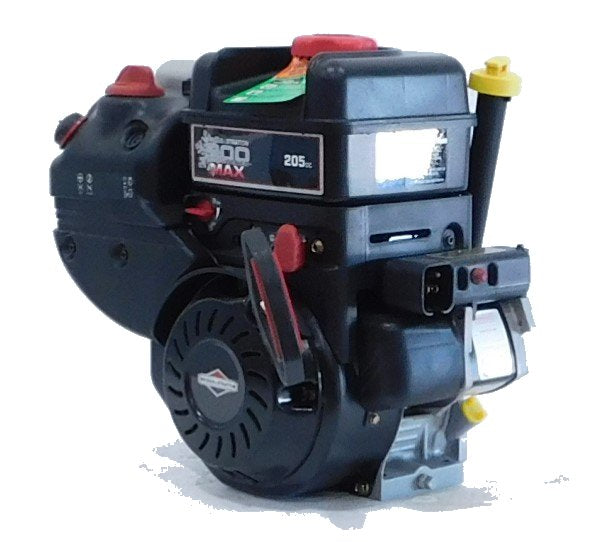

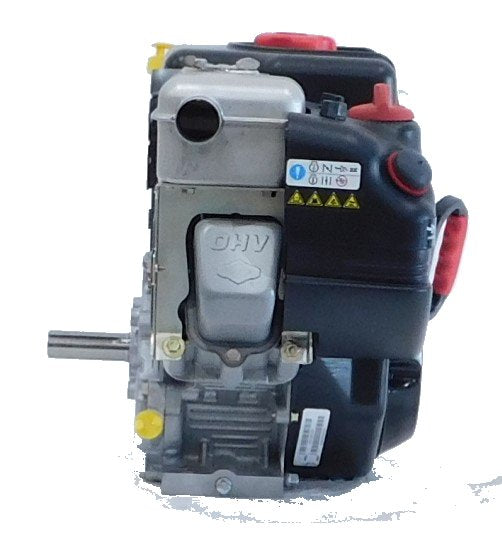

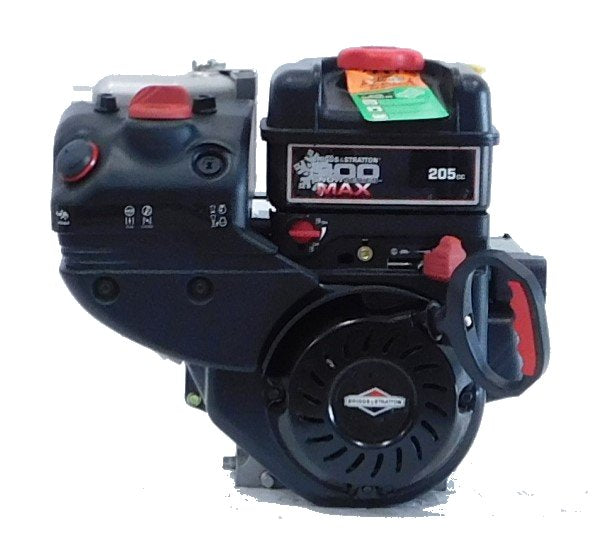

Briggs & Stratton 9 TP Snow Engine
|
MODEL NUMBER:
|
12D313-0519 |
|
POWER OUTPUT:
|
9 Torque Power (Replaces 5-7hp Engines) |
|
SHAFT MOUNTING:
|
Horizontal Shaft |
|
SHAFT SIZE: (D x L)
|
1" x 2-27/64" tapped 5/16" |
|
STARTER TYPE:
|
Recoil Start w/ 110v starter |
|
APPLICATION(S):
|
Snowblower Engine |
|
WEIGHT:
|
40 lbs |
|
REPLACES:
|
Snow Engines |
12D313-0519-E1
Engine Specifications
| Engine Fuel | Gasoline |
| Configuration | Horizontal |
| Cylinders | One |
| SKU | 12D313-0519-E1 |
| Gross Horsepower* | 9.00 |
| Bearings | BEARINGS, FLANGE MOUNT PLAIN W |
| Blower Housing | PLATE, TRIM - COLOR 290 - SATIN BLACK |
| Bore Type | Sleevebo |
| Bore Size | 2.690 |
| Stroke | 2.200 |
| Casing Clamps | CASING CLAMP & METRIC SCREW W |
| Controls Groups | CONTROL GROUP 30, MODEL |
| Cylinder Head | CYLINDER, ALUMINUM W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, 90 DEG TUBULAR INSTALLED |
| Dipsticks | DIPSTICK, IN CRANKCAS |
| Oil Drain | OIL FILL, DUAL |
| Flywheel | FLYWHEEL, HEAVY EQUIP FOR ELEC START |
| Exhaust | MUFFLER, SUPER LO-TONE INS |
| Spark Plug | SPARK PLUG, EMC "Q" |
| Starting System | STARTER, REWIND W/ MIT GRIP HANDLE: P31 |
Technical Specifications
| Model Series | 12D3 |
| Power Lbs/Ft of Torque | 9 |
| Engine Series | 900 |
| Displacement | 205 |
| Oil Capacity | 20 oz (0.6 l) |
| Valve Configuration | OHV |
| Flywheel Torque | 65 lb/ft (88.0 Nm) |
| Governor Arm Torque | 45 lb/in (5.0 Nm) |
| Carb Mount | 85 lb/in (9.5 Nm) |
| Plug Gap | 0.03 in (0.75 mm) |
| Intake Valve | .004-.006 in (.10-.15 mm) |
| Exhaust Valve | .009-.011 in (.23-.28 mm) |
| Idle Speed | 1750 |
| Air Gap | .010-.014 in (.25-.36 mm) |
| Flywheel Puller Part | 19069 |
| Flywheel Holder Part | 19433 |
| Connecting Rod Torque | 100 lb/in (11.5 Nm) |
| Sump Torque | 100 lb/in (11.5 Nm) |
| Head Torque | 220 lb/in (25.0 Nm) |
