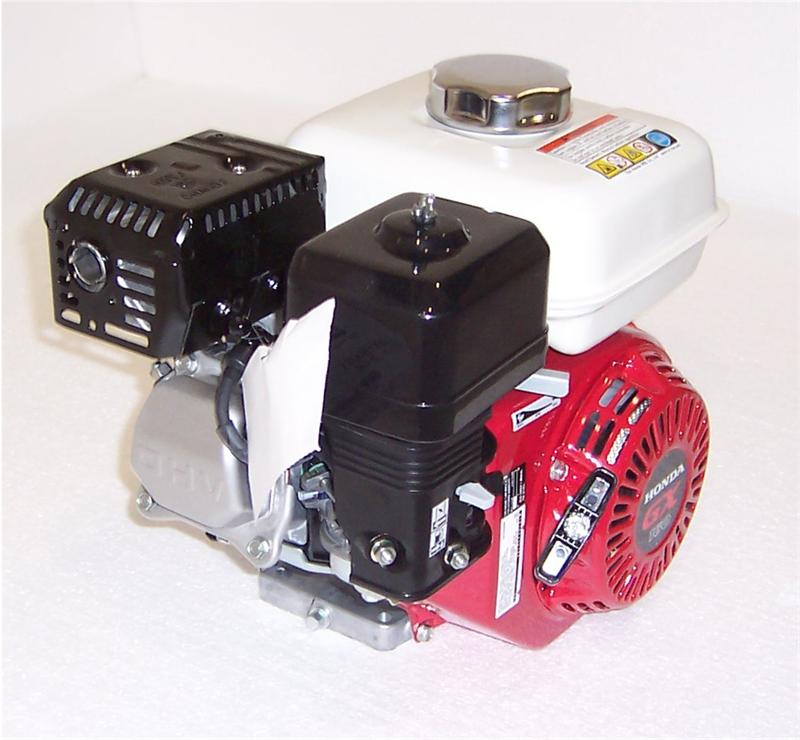

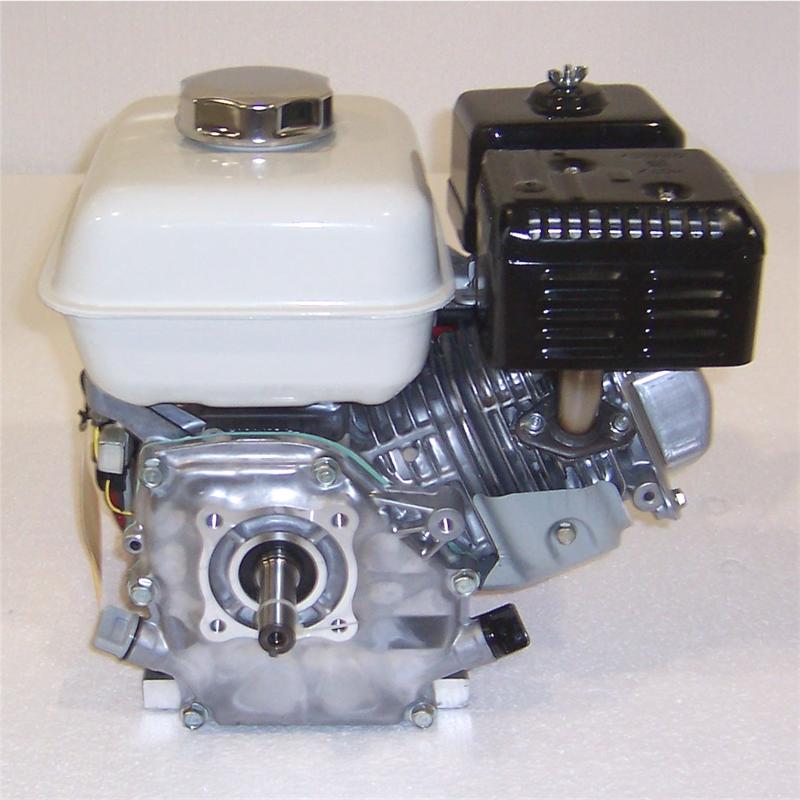

Honda Horizontal Engine 4.8 Net HP 163cc OHV 3/4" x 2-7/16" #GX160-QX2

4.8 Net HP Formerly Rated 5.5 HP

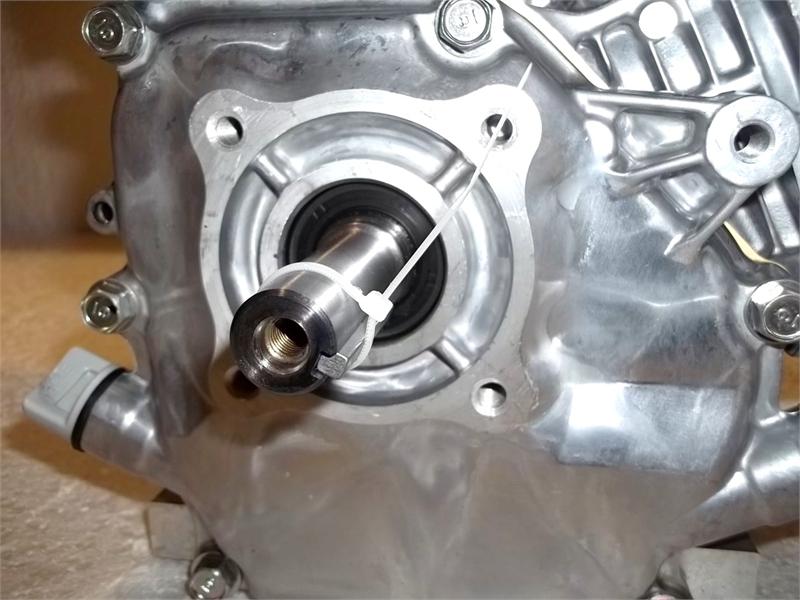

3/4" x 2-7/16" keyed shaft, tapped 5/16".

OHV, low oil shutdown protection, heavy duty industrial engine,

3 year warranty.

Universal bolt pattern for easy repowering.

Model GX160-QX2.

37 lbs

Features
• Honda OHV Commercial-grade engine
• Horizontal shaft
• Electronic ignition/Oil Alert
• EPA/CARB compliant
• 3 Year Commercial Warranty

Applications: Air compressors, Generators, Pumps
Pressure washers, Reel-type lawn mowers, Go-Karts, Agricultural equipment, Chipper/Shredders, Small construction equipment, Concrete saws

* The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm (7000 rpm for model GHX50). Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables.

CLICK PICTURE FOR LARGER IMAGE

1	31-052	RECOIL STARTER ASSY HONDA	Honda # 28400-ZH8-013ZA
2	43-425	RECOIL SPRING HONDA	Honda # 28442-ZH8-003
3	31-023	RECOIL STARTER PULLEY	Honda #28420-ZH8-013
4	31-088	STARTER PAWL SPRING	Honda #28443-ZH8-003
5	31-025	STARTER PAWL	Honda #28422-ZH8-013
6	31-027	STARTER PAWL RETAINER	Honda #28433-ZH8-003
7	31-028	STARTER CENTER SCREW	Honda #90003-ZH8-003
8	33-013	SWITCH, HONDA	Honda #36100-ZE1-015
9	BLOWER HOUSING- FAN COVER	Honda #19610-ZE1-000ZA
10	30-346	AIR FILTER HONDA PRE-OILED	Honda #17211-ZE1-000
11	31-026	STARTER CUP	Honda #28451-ZH8-003
12	07-393	FITTING FUEL TANK HONDA	Honda #16955-ZE1-000
13	55-126	FUEL CAP HONDA	Honda #17620-ZE2-W00
14	07-118	FUEL FILTER IN TANK HONDA	Honda #17672-ZE2-W01
15	07-600	FUEL TANK HONDA	Honda #17510-ZE1-020ZA
16	07-060	FUEL LINE HONDA	Honda #95001-45200-40S
17	DIODE ASSEMBLY	Honda #34150-ZH7-003
18	BALL BEARING, CRANKSHAFT	Honda #96100-62050-00/91001-ZF1-003
19	33-541	SWITCH OIL LEVEL HONDA 15510-ZE2-033	Honda #15510-ZE1-033
20	50-450	GASKET, SUMP COVER	Honda #11381-ZH8-801
21	49-196	CAP WITH DIPSTICK HONDA	Honda #15600-ZE1-003
22	49-208	OIL SEAL HONDA	Honda #91202-883-005
23	50-451	OIL CAP	Honda #15600-ZE1-003
24	36-141	CONNECTING ROD HONDA	Honda #13200-ZE1-010
25	36-243	PISTON HONDA	Honda #13101-ZF7-010
26	36-043	RING SET HONDA	Honda #13010-ZF1-023
27	SHIELD, CYLINDER LOWER	Honda #19630-ZH8-000
28	50-425	GASKET MUFFLER HONDA	Honda #18381-ZH6-800
29	35-041	MUFFLER SHIELD	Honda #18320-ZF1-H01
30	35-038	MUFFLER HONDA	Honda #18310-ZF1-000
31	ROCKER COVER	Honda #12310-ZE1-020
32	50-432	GASKET VALVE COVER HONDA	Honda #12391-ZE1-000
33	49-183	GASKET CARB INSULATOR HONDA	Honda #16212-ZH8-800
34	49-190	GASKET CARB HONDA	Honda #16221-ZH8-801
35	49-914	LEVER, CHOKE	Honda #16610-ZE1-000
36	49-185	GASKET AIR CLEANER HONDA	Honda #16220-ZE1-020
37	33-348	MODULE SOLID STATE HONDA	Honda #30500-ZE1-033
38	36-521	VALVE INTAKE HONDA	Honda #14711-ZF1-000
39	36-522	VALVE EXHAUST HONDA	Honda #14721-ZF1-000
40	50-556	HEAD GASKET HONDA	Honda #12251-ZF1-000
41	36-530	LONG HEAD HONDA GX160
42	50-638	CARBURETOR COMPLETE HONDA	Honda #16100-ZH8-W50
43	49-208	OIL SEAL HONDA	Honda #91202-883-005
