Description

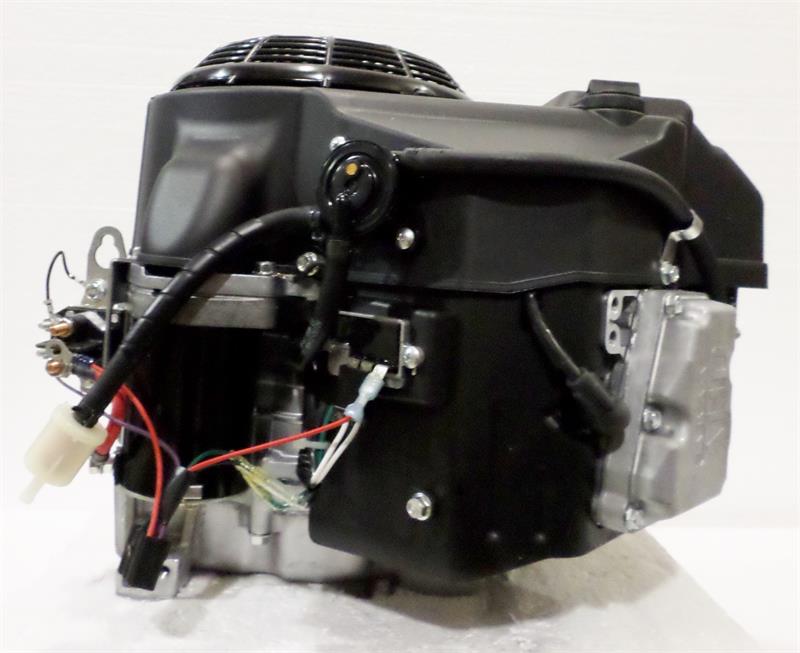

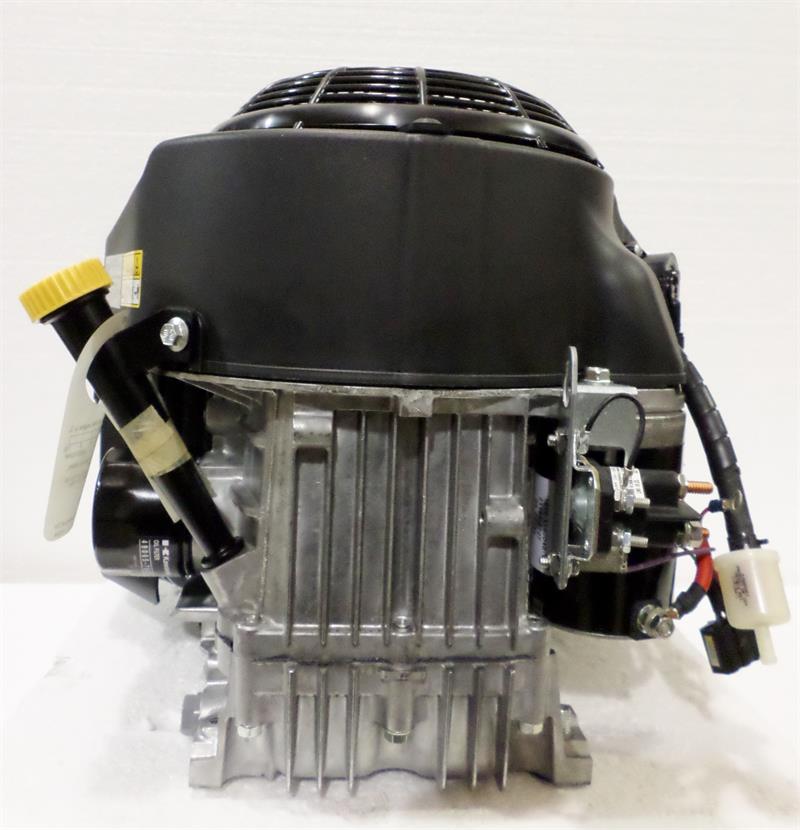

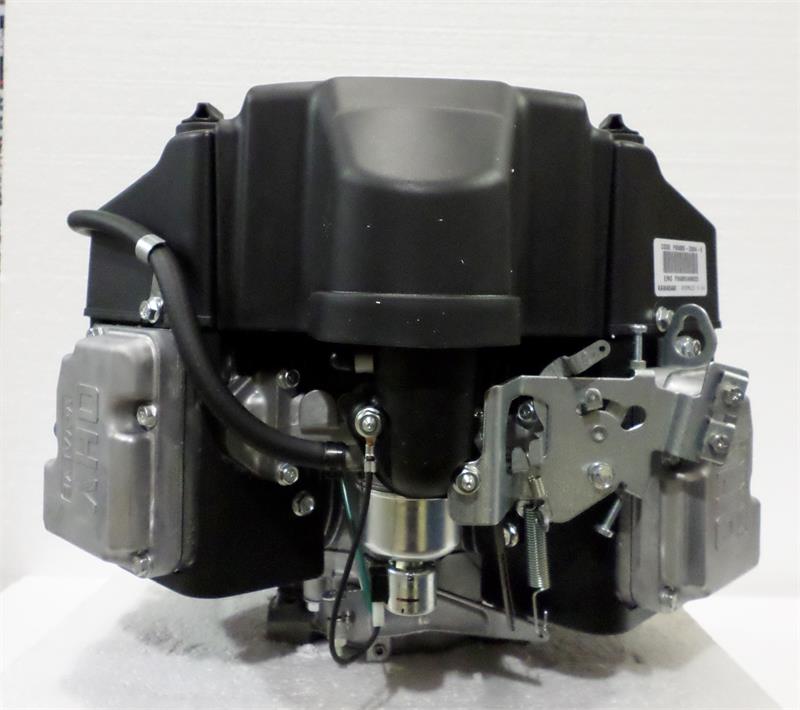

Kawasaki Vertical 19 HP 603cc Engine 1-1/8" x 4-5/16" #FS600V-FS04
Kawasaki FS Series engines are engineered to be high powered but still environmentally friendly. They feature a compact, 90° V-twin design with overhead V-valve, as well as an internally vented carburetor with a fuel shut-off solenoid. There is also a dual element air filter with a plastic blower housing that makes for quieter operation.
Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
19hp Kawasaki OHV
1-1/8" x 4-5/16" shaft, tapped 7/16" with 1/4" keyway.
1-1/8" x 4-5/16" shaft, tapped 7/16" with 1/4" keyway.
Electric start, 15amp alternator.
Less fuel tank
Seperate choke & throttle
Seperate choke & throttle
Less Muffler
Replacement engine for commercial zero turns and riding mowers.
3 year consumer from Kawasaki.
Model FS600V-GS04
83 lbs.
FEATURES:
- Overhead V-valve
- 90° V-twin
- High performance pressurized lubrication
- Electronic spark ignition
- Automatic compression release
- Internally vented carburetor
- Rotating grass screen
- Dual element air filter
- Cast-iron cylinder liners
| SPECIFICATIONS | |
|---|---|
| DISPLACEMENT |
603cm3 (36.8cu. in.)
|
| NUMBER OF CYLINDERS |
2
|
| BORE X STROKE |
2.9 x 2.8 in. (73 x 72mm)
|
| COMPRESSION RATIO |
8.1:1
|
| OIL CAPACITY |
1.8U.S. qt (1.7liters)
|
| MAXIMUM POWER |
18.5hp (13.8kW)
at 3,600rpm
|
| MAXIMUM TORQUE |
32.5ft lbs (44.1N·m)
at 2,200RPM
|
| DRY WEIGHT |
80.9lbs (36.7kg)
|
Kawasaki Mufflers (not included)
|
|
