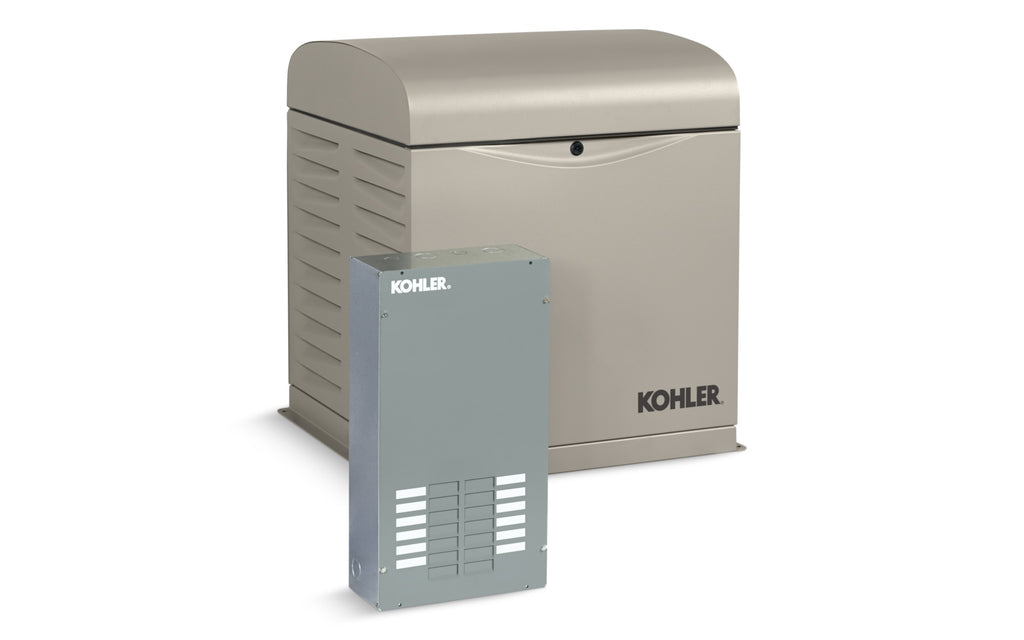

Kohler 12RESVL-100LC12 Air-Cooled Standby Generator with 100 Amp 12-Circuit Transfer Switch Single Phase, 12,000-Watt
- 12 kW standby generator with automatic transfer switch and oncue plus
- 12 kW generator to keep your appliances working, the heat or AC running and your security system on, based on load size.
- Power boost technology provides power to start large loads without dropping power to other appliances
- Premium Power quality engineered TO protect your most valuable electronics with exceptional digital voltage and frequency regulation along with low levels of harmonic distortion
|
Our generators for backup power provide reliability and performance. When you lose power during an outage or storm, a hard-working 12 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.* OnCue® Plus Generator Management System is standard with every RESV or RESVL generator.
-
High Quality Power.
Kohler generators provide advanced voltage and frequency regulation along with ultra-low levels of harmonic distortion for excellent generator power quality to protect your valuable electronics.
-
Powerful.
The Kohler 12 kW generator can easily start and run a 5 ton air conditioner with up to 5 kW preload.*
-
Reliable.
Kohler is known for extraordinary reliability and performance and backs that up with a 5-year or 2000 hour limited warranty.
-

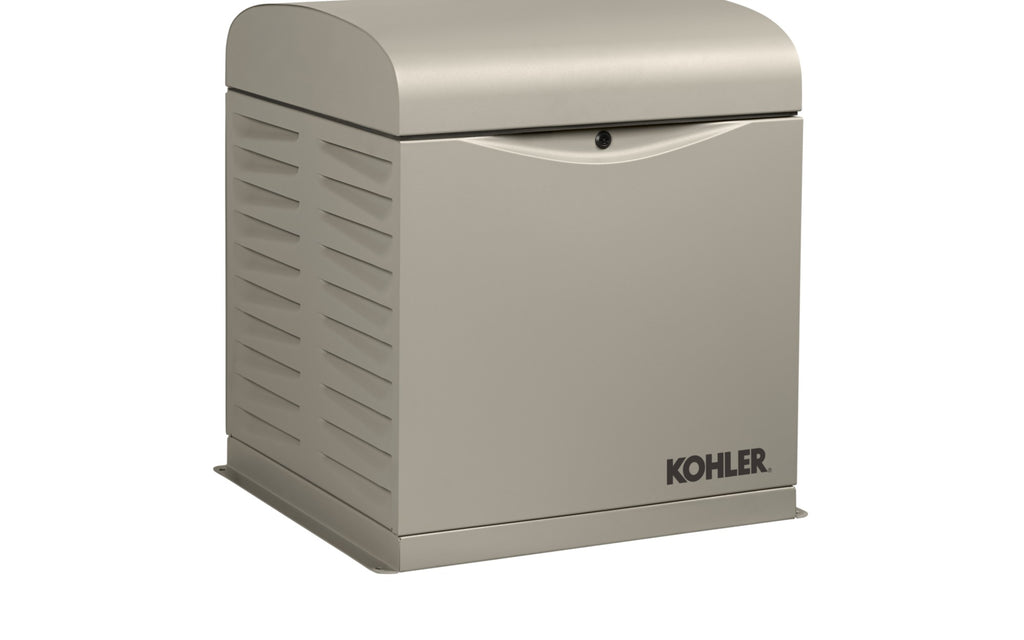

Enclosure
Bold new Kohler design in steel, dipped in e-coat for extra corrosion protection and painted with a durable powder coat finish.
-
Remote Monitoring
Every 12RESVL comes standard with OnCue® Plus, our remote monitoring system, which gives you peace of mind at home no matter where you are in the world.
THE POWER YOU NEED
- PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
- Extraordinary peak motor-starting capacity: 12RESVL at 16.8kVA at 240V
- Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
- Powered by reliable KOHLER Series 7000 V-twin engine with efficient OHV design. operation speed is 3600 rpm (the standard for air-cooled generators)
- Compatible with Programmable Interface Module (PIM)
- Also compatible with Load Control Module (LCM) with single-phase generators only
THE CONVENIENCES YOU EXPECT
- Comes with an RXT 100-amp indoor-rated automatic transfer switch with 12-space load center.
- Accepts natural gas fuel pressure as low as 3.5 inches
- Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
- Meets 181 mph wind rating
- Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
*Based on generator and load size.
|
|
| Model |
12RESVL |
| Rated kW LP |
12 kW |
| Rated kW NG |
11 kW |
| Amps LP |
50.0 amps |
| Amps NG |
45.8 amps |
| Peak Motor Starting kVA @240 V |
20.3 kVa |
| Alternator Note |
All information shown is for 1 Phase 60 Hz generatorwith the largest alternator option available. |
| Displacement |
725 cm³ (44 cu. in.) |
| Horsepower |
NG 18 HP, LP 21.4 HP |
| Enclosure Material |
Steel |
| Sound Output During Weekly Exercise |
67 dB(A) |
| Sound Output During Full-speed Operation |
71 dB(A) |
| Response Time |
10 seconds |
| Warranty |
Premium five-year limited warranty |
| Country of Origin |
US |
| Certifications/Listings |
EPA,UL 2200 |
| Automatic Transfer Switch Included |
Included |
| Remote Monitoring Available |
Included |
| Off Grid / Utility Backup |
Utility Backup |
| Weight |
489 lbs. (222 kg) |
| Alternator Type |
2-Pole, Rotating Field |
| Fuel Consumption on NG at 50% load? |
128 cfh |
| Fuel Consumption on LP at 50% load? |
57 cfh |
| Controller |
RDC2 Controller |
| Cylinder Arrangement |
V-2 |
| Dimensions |
777 mm x 712 mm x 824 mm (30.6 in. x 28 in. x 32.4in.) |
| Engine Manufacturer/Description |
KOHLER |
| Engine Model |
KT725 1.9L, 4-Cycle |
| Engine/Alternator RPM |
3600 |
| Fuel Type |
Natural Gas,LPG |
| Frequency |
60 Hz |
| Phase |
Single Phase |
| Voltage @ 60 Hz |
120/240 |
| Digital Voltage Regulation |
±1.0% |
| Built in Mounting Pad |
Yes |
| Accessory |
(Available-Not Included) |
| GM92001-1 |
Load Management Module |
| GM81529-S1 |
Programmable Interface Module (PIM) |
| GM81529-S2 |
Programmable Interface Module (PIM), CSA |
| GM17250-S1 |
Transformer,Current,400A:3Vac,MediumVolt |
| GM114539-S1 |
OnCue, Wireless, RDC2/VSC Controller |
| GM57969-S |
Kit, Carb. Heater, 40W120V (GM57969-KP1) |
| GM92406-S3 |
Battery Heater Assembly Kit 120V, 50W |
| GM106374 |
Battery, 1/12V, 500CCA, Wet |
| GM103279-S1 |
NEC Remote, E-Stop |
| GM113935-S1 |
Emergency Stop 14/20RCA / RESC |
