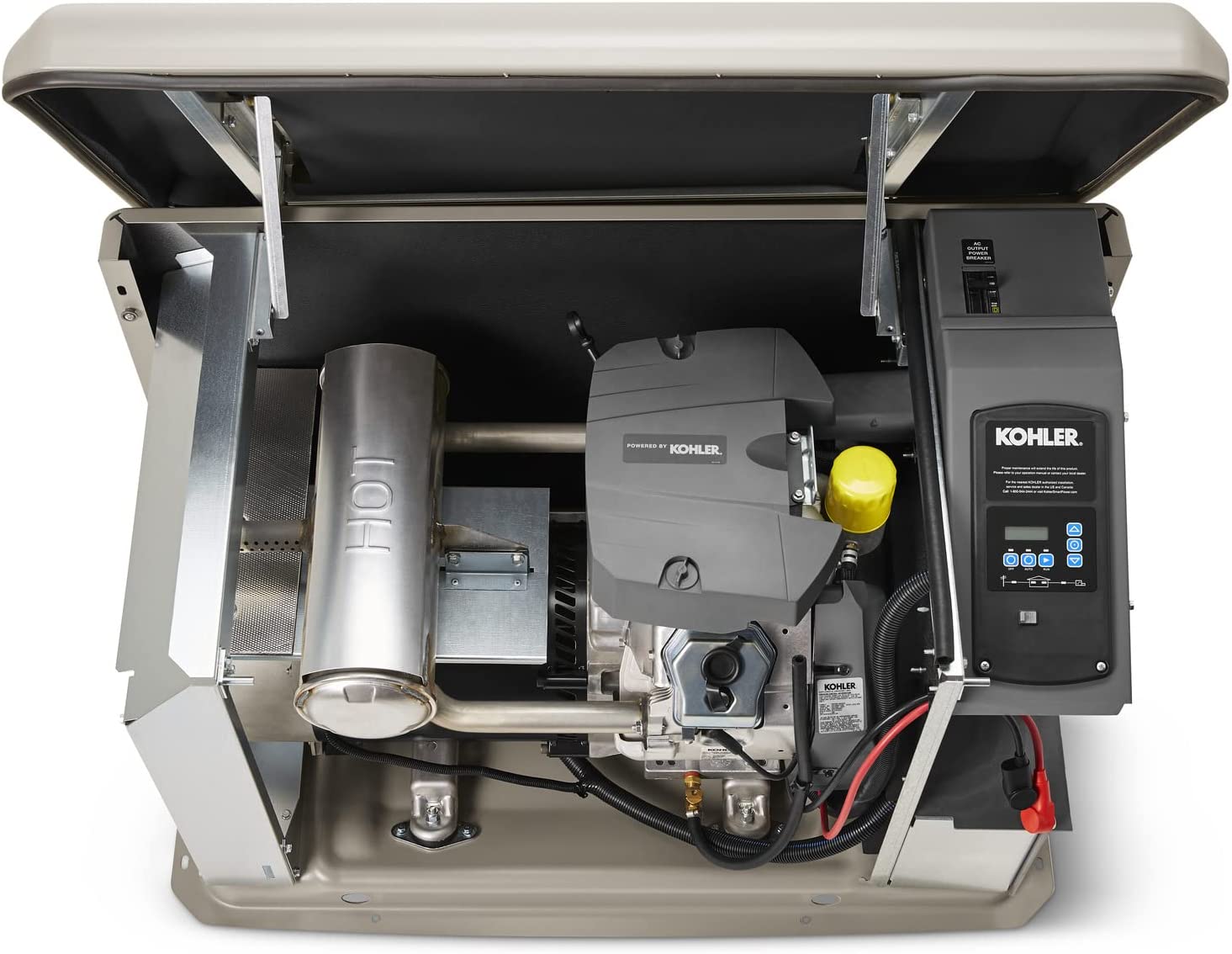

Kohler 26RCAL-200SELS Air-Cooled Standby Generator with 200 Amp Transfer Switch Single Phase, 26,000-Watt

Kohler 26RCAL-200SELS Air-Cooled Standby Generator with 200 Amp Transfer Switch Single Phase, 26,000-Watt

Popular generators for backup power, with an automatic transfer switch included. When you lose power during an outage or storm, a hard-working 26 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.*

• Reliable.
  Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather.

  Powerful.
  In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics.*

  Premium warranty.
  We've got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that's built to last.

  Award winner.
  KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine.

THE POWER YOU NEED

• PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
• Extraordinary peak motor-starting capacity: 26RCA at 39kVA at 240V
• Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
• Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
• Compatible with OnCue® Plus and OnCue® Plus Wireless Generator Management Systems, and Programmable Interface Module (PIM)
• Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only

Model 26RCAL Rated kW LP 26 kW Rated kW NG 24 kW Amps LP 109 amps Amps NG 100 amps Peak Motor Starting kVA @240 V 39 kVa Alternator Note All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. Displacement 999 cm³ (61 cu. in.) Horsepower NG 33.0 HP, LP 36.4 HP Enclosure Material Aluminum Sound Output During Weekly Exercise 56 dB(A) Sound Output During Full-speed Operation 67 dB(A) Response Time 10 seconds Warranty Premium five-year limited warranty Country of Origin US Certifications/Listings EPA,UL 2200,cUL Automatic Transfer Switch Included Included Remote Monitoring Available Included Off Grid / Utility Backup Utility Backup Weight 670 lbs. (304 kg) Alternator Type 2-Pole, Rotating Field Fuel Consumption on NG at 50% load? 180 cfh Fuel Consumption on LP at 50% load? 85 cfh Controller RDC2 Controller Cylinder Arrangement V-2 Dimensions 1193 mm x 660 mm x 820 mm (47 in. x 26.0 in. x 32.3 in.) Engine Manufacturer/Description KOHLER Engine Model CH1006 Engine/Alternator RPM 3600 Fuel Type Natural Gas,LPG Frequency 60 Hz Phase Single Phase Voltage @ 60 Hz 120/240 Digital Voltage Regulation ±1.0% Built in Mounting Pad Yes



TECHNICAL DOCUMENTS

•

  Dimensional Drawing - adv9919.pdf
•

  Generator Operation Manual - tp7092.pdf
•

  Generator Parts Catalog - tp7094.pdf
•

  Specification Sheet - g4315.pdf
•

  Specification Sheet - g6179.pdf
