Description
|
|
|

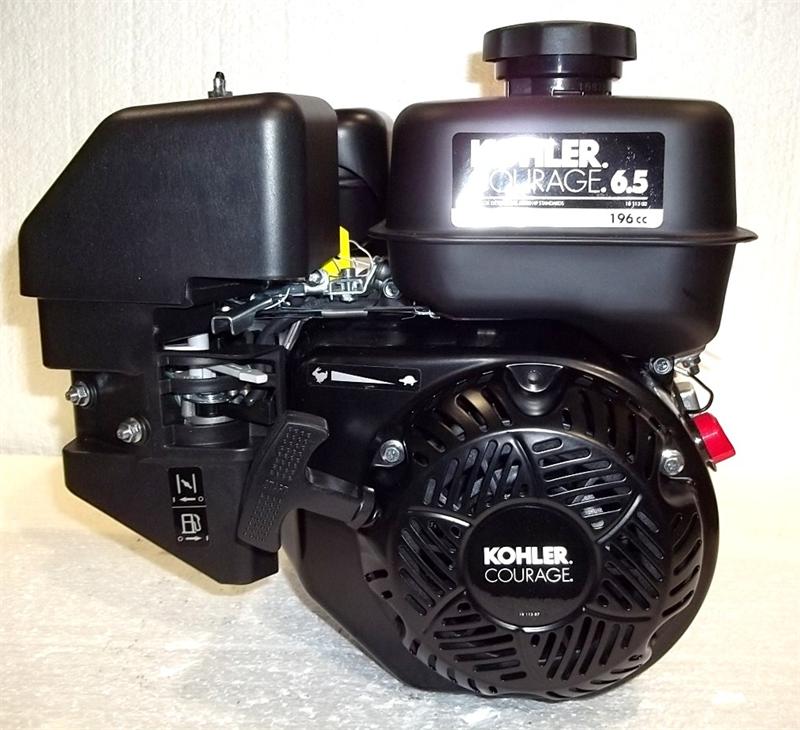

6.5hp Kohler Courage Engine
3/4" x 2-27/64" keyed shaft, tapped 5/16"-24.
OHV, dual ball bearing PTO, cast iron cylinder liner,
Recoil start
Universal replacement type engine
2 year warranty.
Model SH265-3011.
43 lbs
CARB approved for sale in California.
|
Model
|
Courage SH265
|
|
Max Power @3600 RPM hp (kW)
|
6.5 (4.9)
|
|
Displacement cu in (cc)
|
12 (196)
|
|
Bore in (mm)
|
2.7 (68)
|
|
Stroke in (mm)
|
2.1 (54)
|
|
Peak Torque @ Maximum lbs ft (Nm)
|
9.1 (12.3)
|
|
Compression Ratio
|
8.5:1
|
|
Dry Weight lbs (kg)
|
35.3 (16)
|
|
Oil Capacity U.S. quarts (L)
|
0.63 (0.6)
|
|
Lubrication
|
Splash
|
|
Dimensions L x W x H in
|
12.3 x 14.3 x 13.5
|
Standard Features:
Overhead Valve Design
Electronic Ignition
Dual Element Air Cleaner
Dual Oil Fill Locations
Dual Oil Drain
Cast Iron Cylinder Liner
3.6 L Metal Fuel Tank with Strainer
Fuel Shut-off Valve
Engine Mounted Throttle and Choke Controls, Remote Throttle Ready
Oil Sentry
Switch Installed (No Light)
Dual Ball Bearings, PTO and Flywheel
Metal Blower Housing
Indexable Recoil Starter
Crankshaft - 0.75" (19.05 mm) Diameter x 2.42" (61.47 mm) PTO Length,
Tapped 5/16-24 UNF
PTO Face - 3.625" (92.08 mm) Diameter (4 Holes) 5/16-24 UNF-2B Thread
Large Capacity Muffler w/Heat Shield and Spark Arrestor
Owner's Manual
Color - Black with Cast Aluminum
