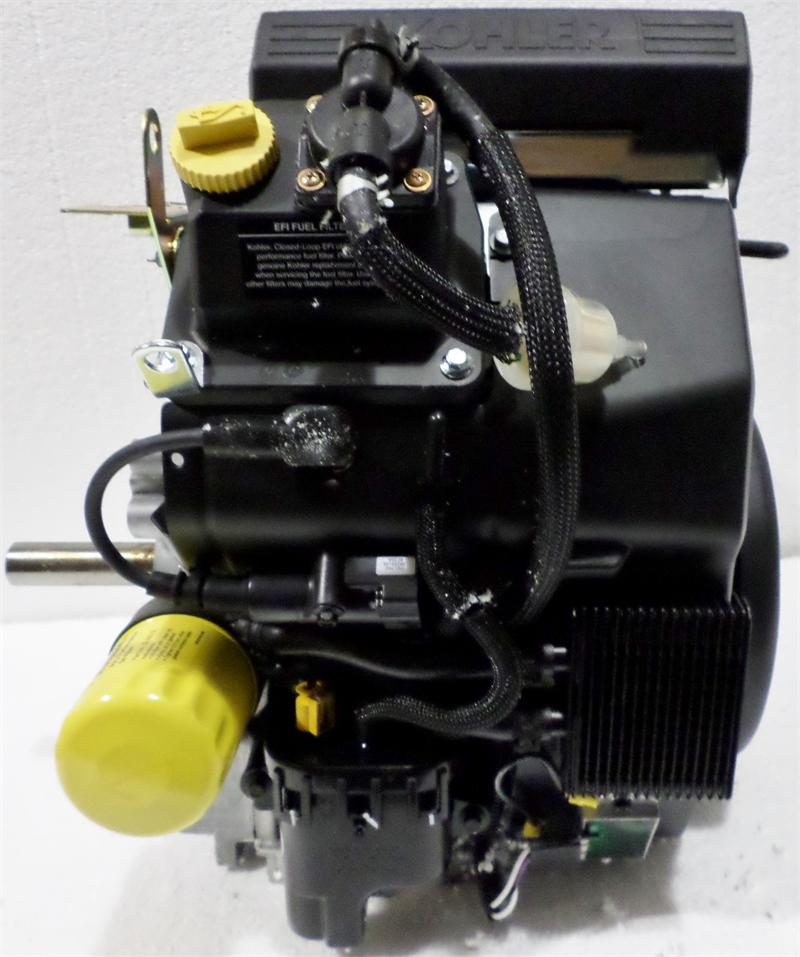

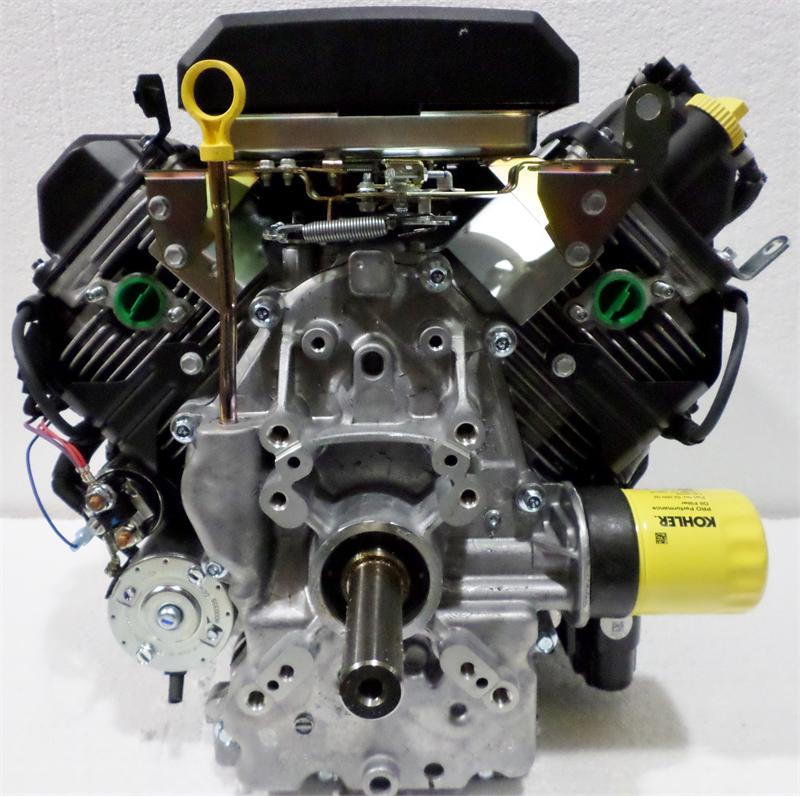

Name: Kohler Command Pro EFI 23 HP Engine 747cc 1-1/8" x 4" #ECH730-3006
Brand: Kohler
SKU: ECH730-3006
Price: 3099.0 USD
Availability: InStock

Kohler Command Pro EFI 23 HP Engine 747cc 1-1/8" x 4" #ECH730-3006

Roll over image to zoom in Click on image to zoom

23 hp Command Pro V-twin

747cc
1-1/8" x 4"

1/4" keyed shaft,

7/16 x 20 tapped

Engine mounted throttle control, starter switch, choke.

OHV, cast iron cylinder liners, full pressure lube w/ oil filter,

engine mounted oil cooler, fuel pump,

12 volt electric start w/ 20amp alternator,

less gas tank, less muffler.

3 year warranty.

Model ECH730-3006.

108 lbs

SAVES $1 an hour vs standard carbureted engines!

Durable, Long Life Design.

Hydraulic valve lifters are oil pressurized, ensuring that push rods stay in constant contact with the rocker arms. Requiring no adjustment, the valve train is virtually maintenance-free. In addition, full-pressure lubrication delivers continuous lube to critical engine components, even at 25-degree angle of operation and optional oil cooler regulates the oil temperature extending oil-change intervals. Large capacity, in-line fuel filter provides extra protection against dirt particles that can clog fuel lines.

High Power Performance.

Overhead valve technology provides greater volumetric efficiency and a higher compression ratio. This produces more power, improved fuel economy and cooling and reduces oil consumption. In addition, there is virtually no carbon buildup, reducing overall maintenance costs. The variable speed, mechanical governor promises smooth performance, regardless of application or fluctuating demands for power.

Reliable Starting.

Kohler Command PRO® electronic ignition system generates a stronger spark at low cranking speed.

Easy Dependable Starts.

Optimized fuel injector placement and intelligent sensor pack deliver fuel wherever and whenever there is a demand for power
No-choke starting even in cold weather, when engine is hot or after long periods of storage
Less downtime and less maintenance for the life of the engine
No messy, gummed-up carburetor to clean or adjust

Increased Efficiency.

Capable of saving up to 25% in fuel over similar-size carbureted engines
Advanced oxygen sensor analyzes the exhaust's air/fuel mixture
Upon analysis, the oxygen sensor adjusts the air/fuel mixture for optimum fuel efficiency
On top of the savings, you'll also refuel less, increasing your overall efficiency

Lowest Operating Cost.

Fast payback for your investment

Model	Command PRO EFI ECH730
J1940 Power hp(kW) ¹	23 (17.2)
Displacement cu in (cc)	45 (747)
Bore in (mm)	3.3 (83)
Stroke in (mm)	2.7 (69)
Peak Torque lbs. ft (Nm)	38.1 (51.7)
Compression Ratio	9.1:1
Dry Weight lbs (kg)	108 (49)
Oil Capacity U.S. quarts (L)	2 (1.9)
Lubrication	Full pressure w/full-flow filter
Dimensions L x W x H in	14.8 x 18.9 x 24.5
Backpressure Limit ²	50
J1995 Power hp (kW) ³	22.5 (16.8)
J1995 Rated Speed (RPM)	3600

* Length is front to rear of engine. Width is valve cover to valve cover. Height is mounting surface to top of air cleaner.

¹ Power (hp) and Torque (lbs ft) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation.

² Inches of H₂0 @ 3600 RPM WOT

³ J1995 power and torque certified by 3rd Party Witness
