Description

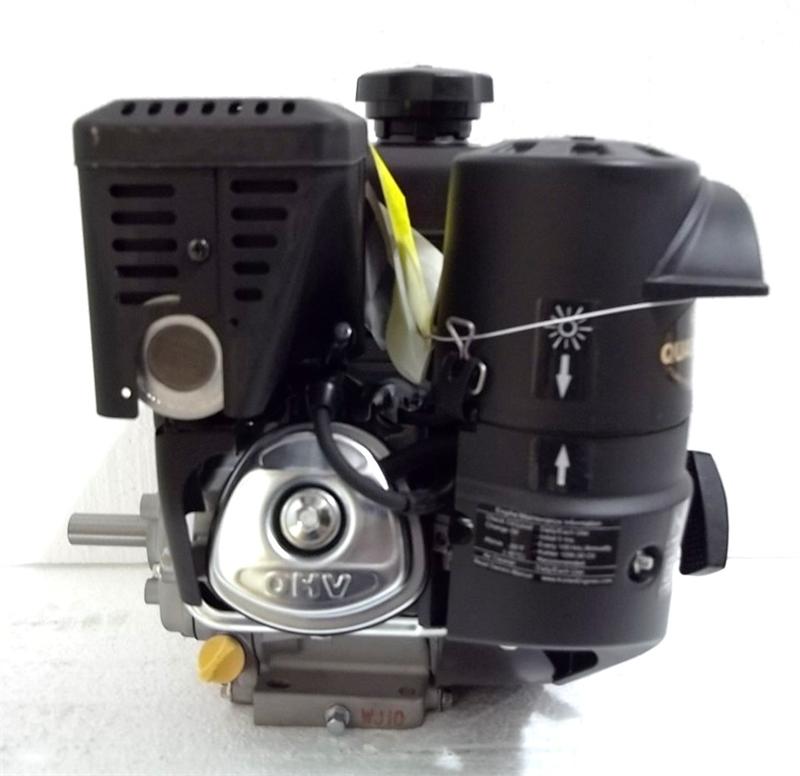

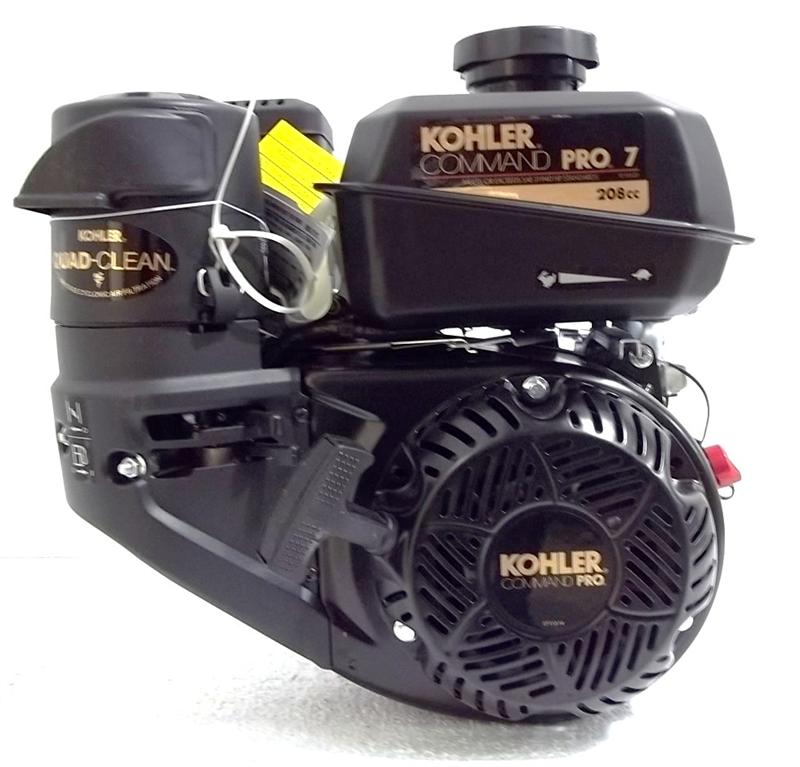

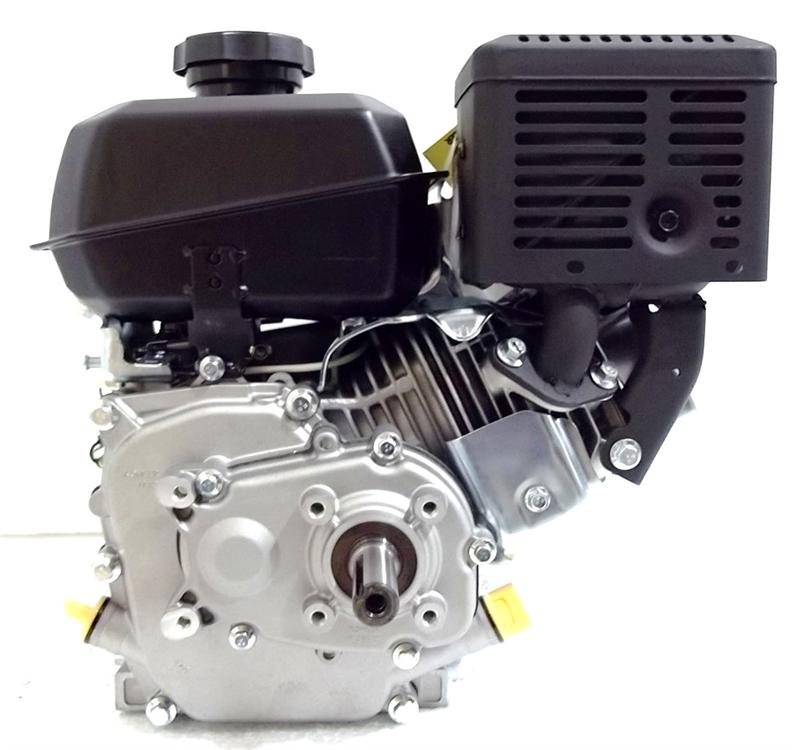

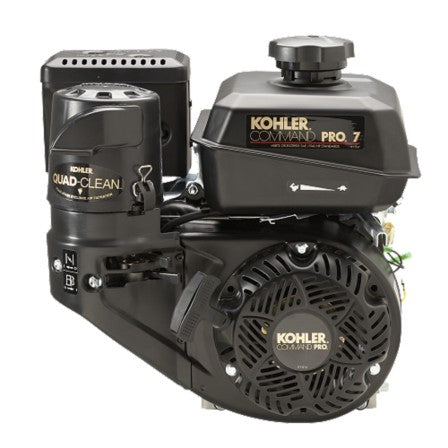

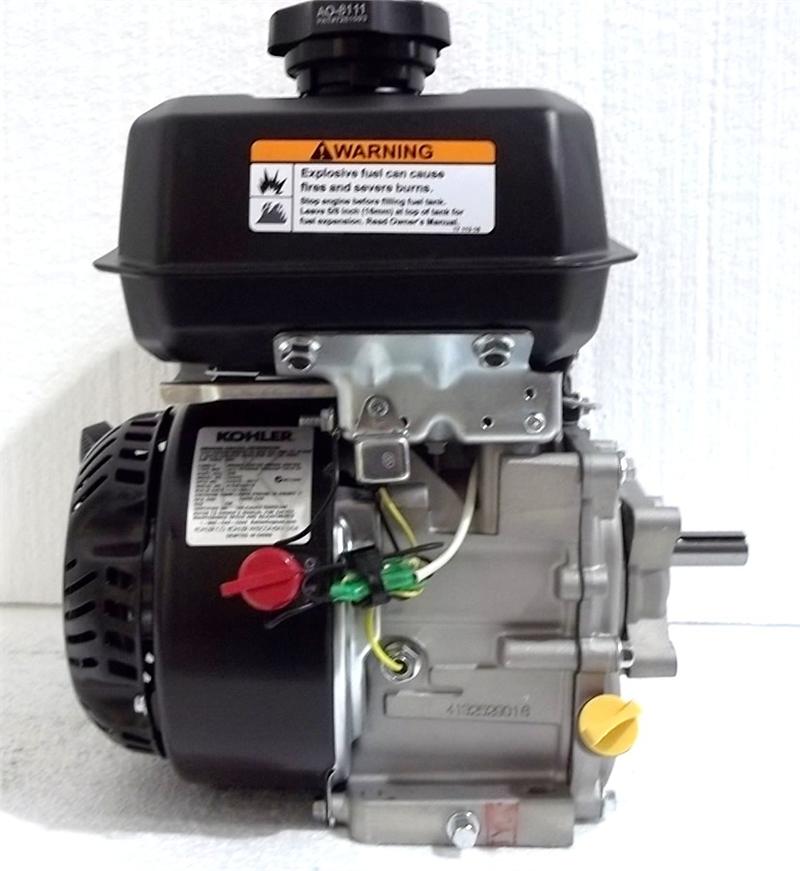

7hp Kohler Command Pro Engine

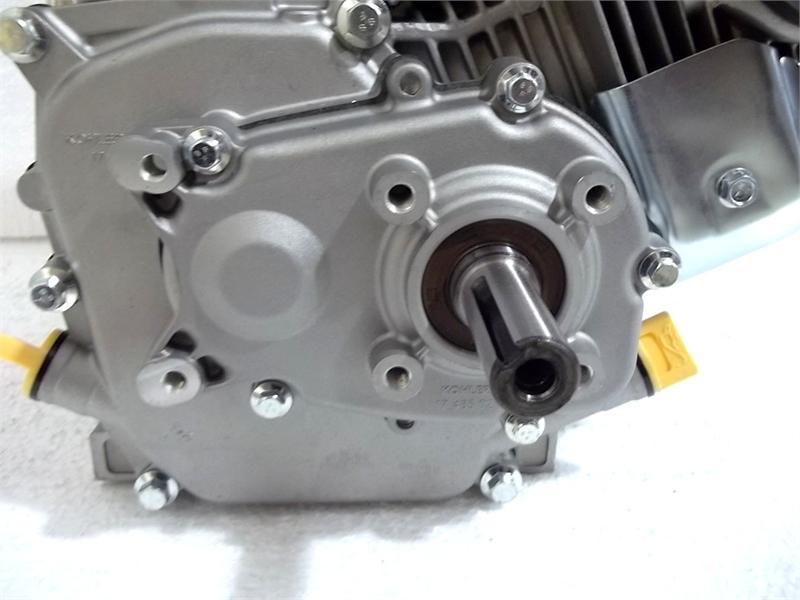

2:1 Gear Reduction
20mm keyed shaft x 53mm Length
OHV, dual ball bearing PTO, cast iron cylinder liner,
Recoil start, low oil device.
Universal replacement type engine
3 year warranty.
Model CH270-3157 (Replaces CH270-3017).
43 lbs
CARB certified for sale in California.
Engine Type:
4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
|
Model
|
Command PRO CH270
|
|
Max Power @3600 RPM hp (kW)
|
7 (5.2)
|
|
Displacement cu in (cc)
|
12.7 (208)
|
|
Bore in (mm)
|
2.8 (70)
|
|
Stroke in (mm)
|
2.1 (54)
|
|
Peak Torque @ Maximum lbs ft (Nm)
|
9.15 (12.4)
|
|
Compression Ratio
|
8.5:1
|
|
Dry Weight lbs (kg)
|
38.7 (17.5)
|
|
Oil Capacity U.S. quarts (L)
|
0.63 (0.6)
|
|
Lubrication
|
Splash
|
|
Dimensions L x W x H in
|
12.7 x 15.2 x 14.2
|
This 7 hp gasoline engine features a 4-cycle, slant cylinder design, with a cast iron cylinder bore and overhead valve for easy access. The Quad-Clean 4-stage air filtration system ensures only clean air enters the engine for maximum power and life of the engine. In addition, this engine is backed by a 3 year commercial warranty.
User-Friendly Maintenance.
- Interference free PTO face
- Dual oil fills and drains
- No tools required all season air cleaner
- Easy access throttle, choke and shutoff
- Oil Sentry automatic low oil engine shutdown system
- Carburetor bowl drain
High Power Performance.
- Overhead valve design
- Increased displacements
- High-inertia flywheel
Extended Run Times.
- Large metal fuel tank and chrome plated cap
- Swirl induction combustion chamber
Quiet, Smooth Operation.
- Oversized muffler with heat shield
- Mechanical governor
- Sound-deadening alloy crankcase
- Silenced air intake
Easy Dependable Starts.
- Electronic ignition system
- Automatic compression release
- Dual ball bearings
- Indexable, easy pull recoil starter
Reliability and Long Life Design.
- Quad-Clean heavy-duty cyclonic air cleaner
- Warm air intake system for cold weather operation
- Cast iron cylinder bore
- Steel-forged crankshaft
- Stellite-faced exhaust valve
- Water trap to separate moisture in fuel
- 3 fuel filters: fill neck, in tank, and carburetor inlet
3 year commerical warranty
-
Equipment Types
This engine powers the following equipment:
- Auger, Grain *Conveyor *Two-Wheel Tractor *Bale Chopper *Feeder
