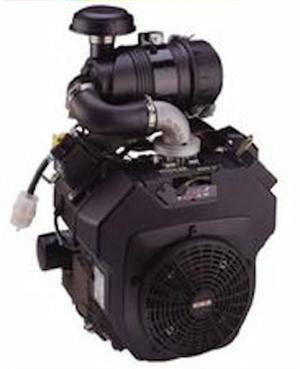

Kohler V-Twin 25 HP 747cc Command Grasshopper 1-1/8" x 3-3/8" #CH742-3112
Roll over image to zoom in Click on image to zoom
Kohler V-Twin 25 HP 747cc Command Grasshopper 1-1/8" x 3-3/8" #CH742-3112

Kohler V-Twin 25 HP 747cc Command Grasshopper 1-1/8" x 3-3/8" #CH742-3112

KohlerSKU: CH742-3112
Price:
$2,799.00
Stock:
Only 1 unit left

Description

25 hp Command V-twin
1-1/8" x 3-3/8"
keyed shaft
Grasshopper replacement engine.
OHV, cast iron cylinder liners, full pressure lube w/ oil filter, fuel pump,
12 volt electric start w/ alternator,
less gas tank,
includes new canister muffler.
Model CH742-3112.
108 lbs

This v-twin cylinder, air-cooled, 25 HP horizontal-shaft engine is built to last. OHV, cast iron cylinder liners, and aluminum block construction make the 4-cycle, gasoline-powered Command Pro ready for the long haul.
Easy Dependable Starts
  • SMART-CHOKE carburetor
  • Electronic ignition system
  • Solenoid shift starter
Reliability & Long-life Design
  • Oil cooler
  • Hardened crankshaft journals
  • PTO thrust bearing
  • High-efficiency fan and screen
  • Heavy-duty air cleaner
  • Cast iron cylinder liners
  • Hydraulic valve lifters
  • Full-pressure lubrication
  • Spin-on, full-flow oil filter
Peak Power Performance
  • Accelerator pump carburetor
  • High-performance spark plugs
  • 20 amp charging, regulated
  • Larger in-line fuel filter
  • Overhead valve (OHV) design
Quiet, Smooth Operation
  • Engineered material blower housing
  • Mechanical fuel pump
  • CARB & EPA emission-certified
User-friendly Maintenance
  • Extended maintenance intervals
  • Yellow oil fill cap & dipstick handle
  • Dual oil drains
  • Easy-access oil fill/dipstick
  • Two-year limited warranty
Specifications
Shaft: Horizontal
Cylinders: V-Twin
Cooling: Air
Engine Type: 4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
Model
Command PRO CH742
J1940 Power hp(kW) 1 25 (18.6)
Displacement cu in (cc) 45.6 (747)
Bore in (mm) 3.3 (83)
Stroke in (mm) 2.7 (69)
Peak Torque lbs. ft (Nm) 41.2 (55.9)
Compression Ratio 9.1:1
Dry Weight lbs (kg) 105 (48)
Oil Capacity U.S. quarts (L) 2 (1.9)
Lubrication Full pressure w/full-flow filter
Dimensions L x W x H in 14.6 x 17.7 x 24.5
Backpressure Limit 2 50
J1995 Power hp (kW) 3 24.7 (18.4)
J1995 Rated Speed (RPM)  3600
*Length is grass screen to PTO mounting face. Width is spark plug to spark plug. Height is top of air cleaner to mounting feet.
