CH730-0066
Kohler V-Twin Command Pro 23.5 HP 725cc 1-1/8" x 3-11/32" 12v ES 20 Amp #CH730-3254
Roll over image to zoom in Click on image to zoom
CH730-0066Kohler V-Twin Command Pro 23.5 HP 725cc 1-1/8" x 3-11/32" 12v ES 20 Amp #CH730-3254

Kohler V-Twin Command Pro 23.5 HP 725cc 1-1/8" x 3-11/32" 12v ES 20 Amp #CH730-3254

KohlerSKU: CH730-3254
Price:
$3,049.00
Stock:
Only 1 unit left

Description

23.5 hp Command Pro V-twin
1-1/8" x 3-11/32"
7/16 x 20 Tapped
1/4" Keyway
Scag replacement engine.
Replaces spec 68579, 68613, CH730-0066.
OHV, cast iron cylinder liners, full pressure lube w/ oil filter,
engine mounted oil cooler, fuel pump,
12 volt electric start w/ alternator,
less gas tank, includes new muffler.
2 year warranty.
Model CH730-0066.
108 lbs

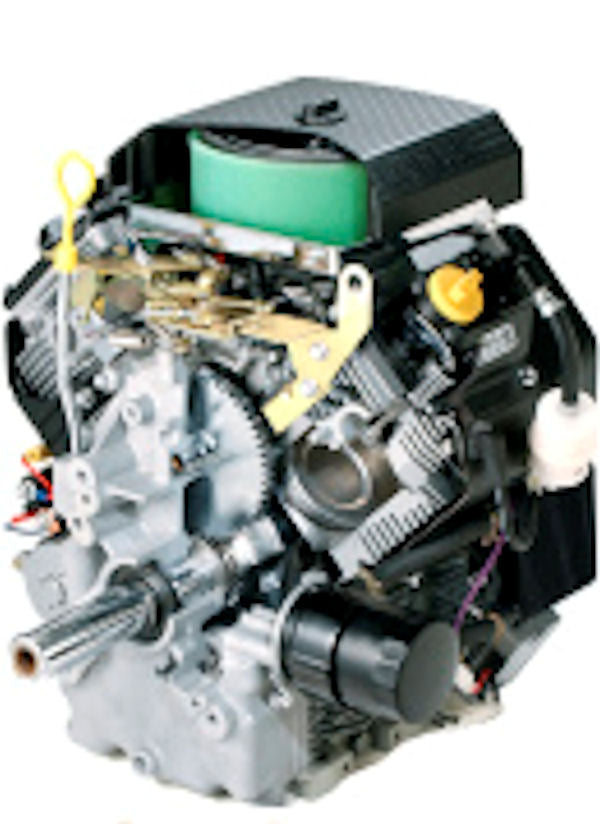

This v-twin cylinder, air-cooled, 23.5 HP horizontal-shaft engine is built to last. OHV , cast iron cylinder liners, and aluminum block construction make the 4-cycle, gasoline-powered Command Pro ready for the long haul.
Easy Dependable Starts
  • SMART-CHOKE carburetor
  • Electronic ignition system
  • Solenoid shift starter
Reliability & Long-life Design
  • Oil cooler
  • Hardened crankshaft journals
  • PTO thrust bearing
  • High-efficiency fan and screen
  • Heavy-duty air cleaner
  • Cast iron cylinder liners
  • Hydraulic valve lifters
  • Full-pressure lubrication
  • Spin-on, full-flow oil filter
 Peak Power Performance
  • Accelerator pump carburetor
  • High-performance spark plugs
  • 20 amp charging, regulated
  • Larger in-line fuel filter
  • Overhead valve (OHV) design
Quiet, Smooth Operation
  • Engineered material blower housing
  • Mechanical fuel pump
  • CARB & EPA emission-certified
User-friendly Maintenance
  • Extended maintenance intervals
  • Yellow oil fill cap & dipstick handle
  • Dual oil drains
  • Easy-access oil fill/dipstick
  • Two-year limited warranty
Specifications
Shaft: Horizontal
Cylinders: V-Twin
Cooling: Air
Engine Type: 4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
MODEL Command PRO CH730
MAX. POWER @ 3600 RPM hp (kW) 23.5 (18.6)
DISPLACEMENT cu. in. (cc) 44.0 (725)
BORE in. (mm) 3.27 (83)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 39.9 (54.1) @ 2800
COMPRESSION RATIO 9.0:1
DRY WEIGHT lbs. (kg) 94 (43)
OIL CAPACITY U.S. quarts (liters) 2.0 (1.9)
LUBRICATION Full pressure w/full-flow filter
DIMENSIONS L x W x H in. 13.8 x 17.7 x 26.5

*Length is grass screen to PTO mounting face. Width is spark plug to spark plug. Height is top of air cleaner to mounting feet.
