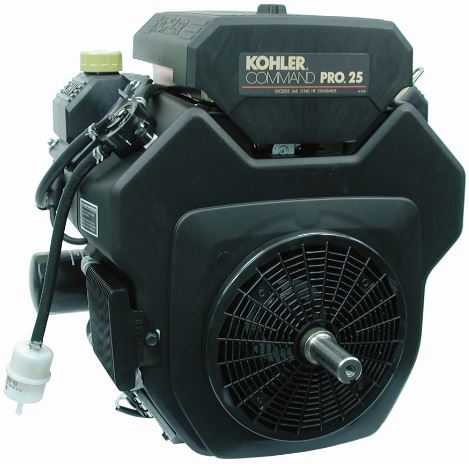

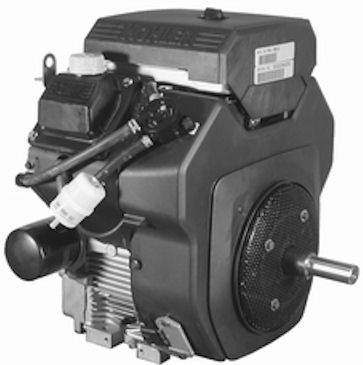

Kohler V-Twin Engine 23.5 HP 725cc 1" x 2" Toro Dingo #CH730-3214
CH730-3214
Roll over image to zoom in Click on image to zoom
Kohler V-Twin Engine 23.5 HP 725cc 1" x 2" Toro Dingo #CH730-3214CH730-3214

Kohler V-Twin Engine 23.5 HP 725cc 1" x 2" Toro Dingo #CH730-3214

KohlerSKU: CH730-3214
Price:
$2,649.00
Stock:
Only 2 units left

Description

23.5 hp Command V-twin
Toro replacement engine.
1" x 2" shaft
3/8 x 24 Tapped
1/4" keyway
Remote Throttle control
12 Volt Electric Start
12V Solenoid Shift Starter
Model CH730-3214
2Year Warranty 108 lbs

This gasoline-driven, 4-cycle, horizontal shaft 23.5 HP engine has reliable features, including: OHV, cast iron v-twin cylinder liners, and aluminum block construction.
Easy Dependable Starts
  • SMART-CHOKE carburetor
  • Electronic ignition system
  • Solenoid shift starter
Reliability & Long-life Design
  • PTO thrust bearing
  • Cast iron cylinder liners
  • Hydraulic valve lifters
  • Dual-element air filter with foam pre-cleaner
  • Full-pressure lubrication
  • Spin-on, full-flow oil filter
Peak Power Performance
  • Overhead valve (OHV) design
  • In-line fuel filter
Quiet, Smooth Operation
  • Engineered material blower housing
  • Mechanical fuel pump
  • CARB & EPA emission-certified
User-friendly Maintenance
  • Dual oil drains
  • Easy-access oil fill/dipstick
  • Two-year limited warranty
Specifications
Shaft: Horizontal
Cylinders: V-Twin
Cooling: Air
Engine Type: 4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
MODEL
Command CH730
MAX. POWER @ 3600 RPM hp (kW)
23.5 (18.64)
DISPLACEMENT cu. in. (cc)
44.0 (725)
BORE in. (mm)
3.27 (83)
STROKE in. (mm)
2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm)
39.9 (54.1) @ 2800
COMPRESSION RATIO
9.0:1
DRY WEIGHT lbs. (kg)
94 (43)
OIL CAPACITY U.S. quarts (liters)
2.0 (1.9)
LUBRICATION
Full pressure w/full-flow filter
DIMENSIONS L x W x H in.
13.8 x 17.7 x 19.0
*Length is to PTO mounting face. Width is spark plug to spark plug. Height is top of air cleaner cover to mounting feet.
